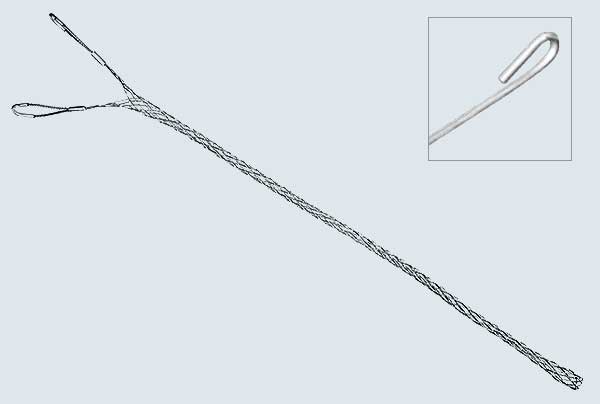

Heavy Duty Support Grips – Double Eye Rod Closing

Features and benefits

  • Made from stainless steel wire
  • Designed for heavier cables
  • Can support multiple cables in a bundle
  • Used when the ends of the cable(s) are not accessible

Heavy Duty support grips made from stainless steel are perfect for supporting heavier cable, conduit or any other cylindrical object. Often used by Utilities and Contractors to support cables transitioning from overhead to underground. One may support multiple cables in one grip. The overall diameter of the cable bundle should fit within the listed range.

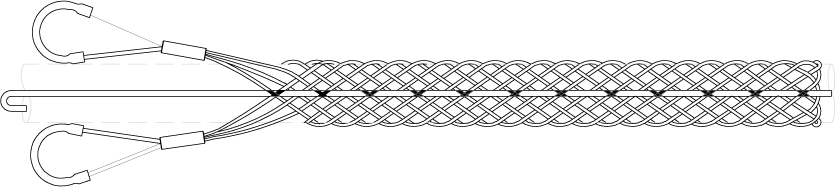

Heavy duty support grips double eye rod closing
Slingco Part No. Range (mm) Lattice Length (mm) Lattice Material Approx. Break Load (kg)
ZCS709813 - 16277Stainless Steel621
ZCS709916 - 19309Stainless Steel944
ZCS710019 - 25351Stainless Steel944
ZCS710125 - 32391Stainless Steel1,211
ZCS710232 - 38417Stainless Steel2,037
ZCS710338 - 44494Stainless Steel2,037
ZCS710444 - 51537Stainless Steel2,269
ZCS710551 - 63654Stainless Steel4,056
ZCS710663 - 76623Stainless Steel4,056
ZCS710776 - 87693Stainless Steel6,089
ZCS710887 - 102914Stainless Steel6,089

A note about dimensions and tolerances

Slingco Part No. Range (in) Lattice Length (in) Lattice Material Approx. Break Load (lb)
ZCS70980.50 - 0.6311304 SS1,370
ZCS70990.63 - 0.7512304 SS2,080
ZCS71000.75 - 1.0014304 SS2,080
ZCS71011.00 - 1.2515304 SS2,670
ZCS71021.25 - 1.5016304 SS4,490
ZCS71031.50 - 1.7516.5304 SS4,490
ZCS71041.75 - 2.0017.5304 SS5,000
ZCS71052.00 - 2.5026304 SS8,940
ZCS71062.50 - 3.0025304 SS8,940
ZCS71073.00 - 3.5027304 SS13,420
ZCS71083.50 - 4.0036304 SS13,420

A note about dimensions and tolerances

Don't see the product you need?

Our range is continually developing and expanding - plus we frequently undertake custom engineering design - so if you don’t see the exact product you need, please contact us with your exact requirements.
