Pole Band System

Features and benefits

  • Aluminum hardware is high strength and high resistance to corrosion
  • Mounting plates with 2" or 3" carriage bolt
  • 3/4" or 1-1/4" Stainless Steel Pre-Cut Banding
  • Rolls of banding available for field cuts to length

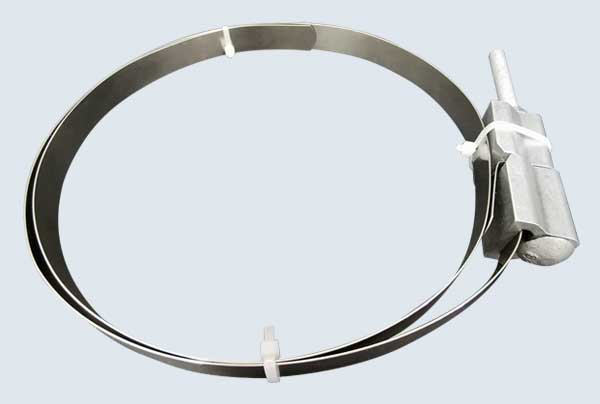

The Slingco Pole Band System includes bolt clamps and mounting plates and 3/4" or 1-1/4" banding. Packages with different band lengths make this system flexible for varying pole sizes.

Measure the circumference of the pole and add a minimum of 6" and select the next size up. Securely mount hardware to cylindrical or square wooden, metal or concrete poles.

The system includes aluminum hardware extrusions, bolt hardware and pre-cut lengths of stainless steel banding. The system is easy to attach and tighten onto poles. A banding tool like the Slingco CPC8748 or CPC8780 may be used to tighten straps. The optional mounting plates allow quick attachment of hardware.

Extrusions and mounting plates available separately for use with rolls of banding cut to lenth in the field.

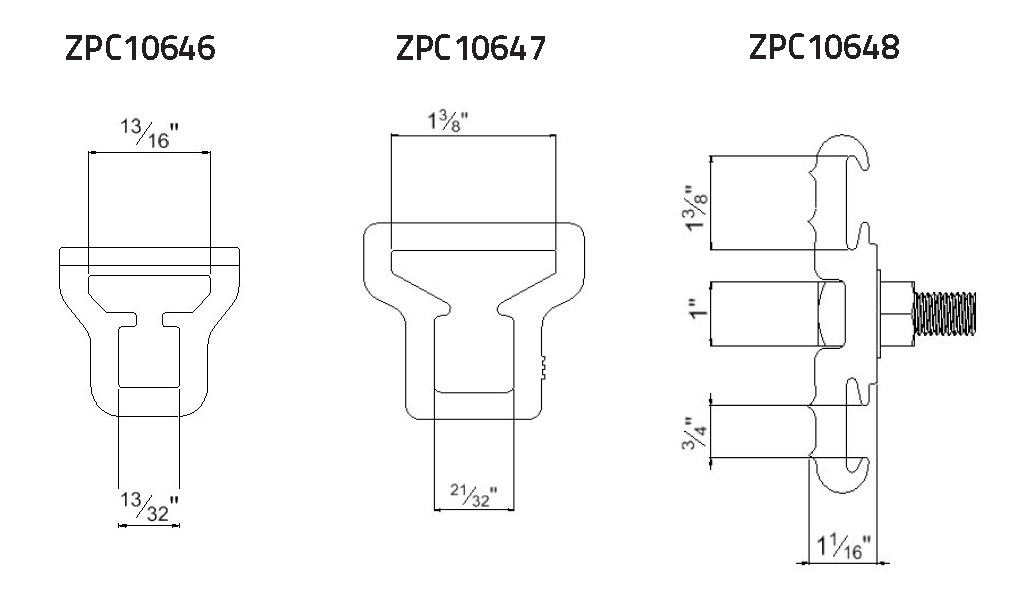

PoleBandSys
Pre-Assembled Extrusions and Banding
Slingco Part No. Description Pack Quantity Pre-Cut Band Length (in) Band Width (in)
ZPC10646-48Two extrusions and pre-cut band12483/4
ZPC10646-72Two extrusions and pre-cut band12723/4
ZPC10647-48Two extrusions and pre-cut band12481-1/4
ZPC10647-72Two extrusions and pre-cut band12721-1/4
Bolt clamps and Mounting Plates
Slingco Part No. Description Pack Quantity Pre-Cut Band Length (in) Band Width (in)
ZPC106463/4” Bolt Clamp12N/A3/4
ZPC106471-1/4” Bolt Clamp12N/A1-1/4
ZPC10648Mounting Plate with 2” Bolt12N/A3/4 or 1-1/4
ZPC10910Mounting Plate with 3” Bolt12N/A3/4 or 1-1/4
Banding (100 ft rolls)
Slingco Part No. Description Pack Quantity Pre-Cut Band Length (in) Band Width (in)
CPC8743201 SS banding100 Ft in BOX3/4"
CPC8744201 SS banding100 Ft in PLASTIC TOTE3/4"
CPC8745201 SS banding100 Ft in BOX1 1/4"

A note about dimensions and tolerances

Slingco Part No. Description Pack Quantity Pre-Cut Band Length (mm) Band Width (mm)
ZPC10646-48Two extrusions, bolt and pre-cut band121,21919
ZPC10646-72Two extrusions, bolt and pre-cut band121,82919
ZPC10647-48Two extrusions, bolt and pre-cut band121,21931.75
ZPC10647-72Two extrusions, bolt and pre-cut band121,82931.75

A note about dimensions and tolerances

Don't see the product you need?

Our range is continually developing and expanding - plus we frequently undertake custom engineering design - so if you don’t see the exact product you need, please contact us with your exact requirements.
