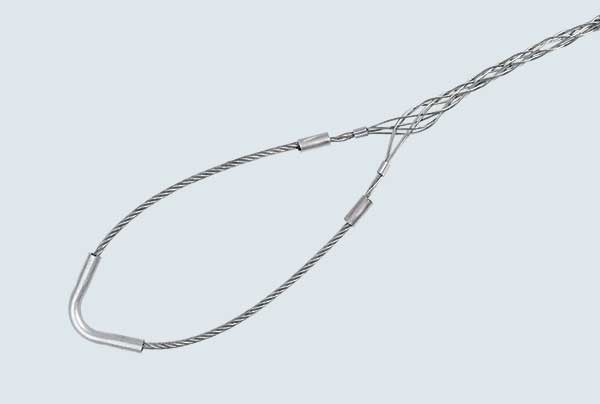

Use these grips to support cables in manufacturing, industrial and open space environments. The extended eye allows for easy installation and hanging from conveniently placed connection points. Also great for Control room and wire to rack applications.
Slingco Part No. | Range (mm) | Wire Material | Eye Length (mm) | Approx. Break Load (kg) |
---|---|---|---|---|
ZCS7684 | 5.6 - 8.1 | Galvanized | 229 | 499 |
ZCS7685 | 7.6 - 10.9 | Galvanized | 229 | 499 |
ZCS7686 | 10.4 - 14.2 | Galvanized | 229 | 499 |
ZCS7687 | 13.5 - 18.5 | Galvanized | 229 | 499 |
ZCS7688 | 17.8 - 21.6 | Galvanized | 229 | 861 |
ZCS7689 | 20.8 - 25.4 | Galvanized | 229 | 861 |
ZCS7690 | 24.4 - 31.7 | Galvanized | 178 | 861 |
ZCS09733 | 5.6 - 8.1 | 304 Stainless Steel | 229 | 294 |
ZCS09734 | 7.6 - 10.9 | 304 Stainless Steel | 229 | 499 |
ZCS09735 | 10.4 - 14.2 | 304 Stainless Steel | 229 | 499 |
ZCS09736 | 13.5 - 18.5 | 304 Stainless Steel | 229 | 499 |
ZCS09737 | 17.8 - 21.6 | 304 Stainless Steel | 229 | 861 |
ZCS09738 | 20.8 - 25.4 | 304 Stainless Steel | 229 | 861 |
ZCS09739 | 24.4 - 31.7 | 304 Stainless Steel | 178 | 861 |
Slingco Part No. | Range (in) | Wire Material | Eye length (in) | Approx. Break Load (lb) |
---|---|---|---|---|
ZCS7684 | 0.22 - 0.32 | Galvanized | 9 | 1,100 |
ZCS7685 | 0.30 - 0.43 | Galvanized | 9 | 1,100 |
ZCS7686 | 0.41 - 0.56 | Galvanized | 9 | 1,100 |
ZCS7687 | 0.53 - 0.73 | Galvanized | 9 | 1,100 |
ZCS7688 | 0.70 - 0.85 | Galvanized | 9 | 1,900 |
ZCS7689 | 0.82 - 1.00 | Galvanized | 9 | 1,900 |
ZCS7690 | 0.96 - 1.25 | Galvanized | 7 | 1,900 |
ZCS09733 | 0.22 - 0.32 | 304 Stainless Steel | 9 | 650 |
ZCS09734 | 0.30 - 0.43 | 304 Stainless Steel | 9 | 1,100 |
ZCS09735 | 0.41 - 0.56 | 304 Stainless Steel | 9 | 1,100 |
ZCS09736 | 0.53 - 0.73 | 304 Stainless Steel | 9 | 1,100 |
ZCS09737 | 0.70 - 0.85 | 304 Stainless Steel | 9 | 1,900 |
ZCS09738 | 0.82 - 1.00 | 304 Stainless Steel | 9 | 1,900 |
ZCS09739 | 0.96 - 1.25 | 304 Stainless Steel | 7 | 1,900 |
Heavy Duty support grips made from stainless steel are perfect for supporting heavier cable, conduit or a...

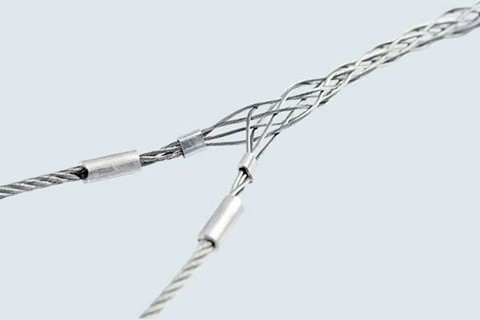

Lightweight easy to use Bus Drop Grips are perfect for supporting cables in such applications as data cen...
