ND – Non-Metallic (Aramid) Double Eye Cable Grips

Features and benefits

  • Continuous weave configuration
  • No fraying wires
  • Lighter and safer to handle
  • Longer Life

Ideal for fiber optic applications, offshore or for a multitude of uses in the electrical industry; dramatically improved weight to break ratio. Slingco’s non-metallic pulling grips are made of a high-strength, non-metallic aramid fiber, with UV protective coating; they are suitable for pulling both single cable and cable bundles. These woven mesh grips offer a non-metallic alternative to steel. Non-metallic material is easy to work with even without gloves.

Double Eye Single Weave Non-Metallic Grip
Slingco Part No. Range (mm) Lattice Length (mm) Approx. Break Load (kg)
ZCS114810 - 205521,115
ZCS117620 - 305231,620
ZCS292225 - 385731,620
ZCS117730 - 406422,230
ZCS117840 - 504872,640
Double Eye Double Weave Non-Metallic Grip
Slingco Part No. Range (mm) Lattice Length (mm) Approx. Break Load (kg)
ZCS118230 - 406424,472
ZCS118340 - 506675389
ZCS118450 - 656367,212
ZCS118565 - 767627,212
ZCS118676 - 1028007,212
ZCS3813102 - 1271,5407,212

A note about dimensions and tolerances

Double Eye Single Weave Non-Metallic Grip
Slingco Part No. Range (in) Lattice Length (in) Approx. Break Load (lb)
ZCS11480.38 - 0.75222,460
ZCS11760.75 - 1.25213,580
ZCS29221.00 - 1.50233,580
ZCS11771.25 - 1.50254,920
ZCS11781.50 - 2.00195,820
Double Eye Double Weave Non-Metallic Grip
Slingco Part No. Range (in) Lattice Length (in) Approx. Break Load (lb)
ZCS11821.25 - 1.50259,860
ZCS11831.50 - 2.002611,880
ZCS11842.00 - 2.502515,900
ZCS11852.50 - 3.003015,900
ZCS11863.00 - 4.003215,900
ZCS38134.00 - 5.006115,900

A note about dimensions and tolerances

Related products

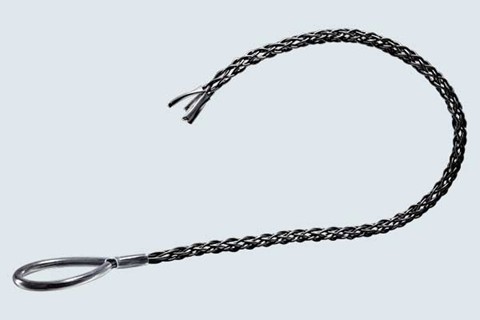

NS non metallic aramid single eye cable grip
