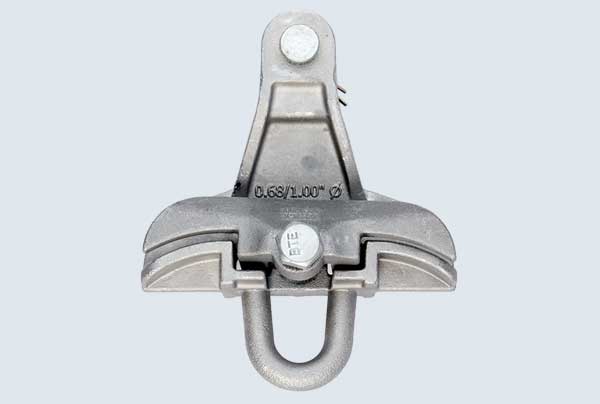

Pole Line Suspension Clamps

Features and benefits

  • Safe and quick installation and removal of the conductor.
  • Variety of sizes to accommodate conductors from 0.16 to 1.50 inch diameter
  • All moving parts of the clamps are captive.
  • Made from heat treated aluminium alloy 356-T6 or ductile iron 60-45-15
  • Hot dip galvanised for corrosion resistance

Our Suspension Clamps and Hold Down Weights are just two examples of pole line hardware products developed as part of our solutions-based approach.

They’re standards-compliant product equivalents providing safe and quick installation and removal of conductors when attached to insulators. A single fastener fully opens and closes the jaw.

Now a Slingco inventoried product, the clamps come in a variety of sizes to accommodate conductors from 0.16 to 1.50 inch diameter, and loadings of up to 18,000 lbs. To prevent loss, all moving parts of the clamps are captive.

Depending on size, the clamps are either made from heat treated aluminum alloy 356-T6 or ductile iron 60-45-15 and hot dip galvanized for corrosion resistance.

Suspension_Clamp_Msrmts
Slingco Part No. Range (in) Material A (in) B (in) C (in) D (in) Load (lbs)
ZMI63200.16 – 0.43Ductile iron5.365.511.160.6310,000
ZMI63210.30 – 0.70Ductile iron8.036.341.380.6318,000
ZMI63220.50 – 0.687Aluminum alloy 356-T66.226.891.610.6312,000
ZMI63230.68 – 1.00Aluminum alloy 356-T68.376.891.730.6312,000
ZMI63241.00 – 1.313Aluminum alloy 356-T69.536.971.740.6312,000

A note about dimensions and tolerances

Related products

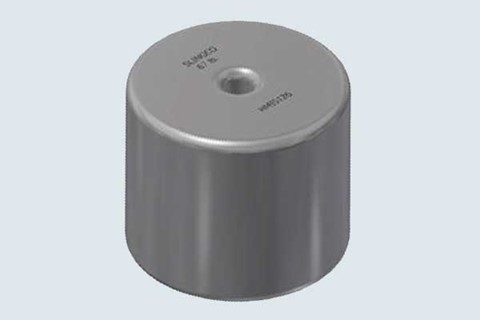

Hold down weights
