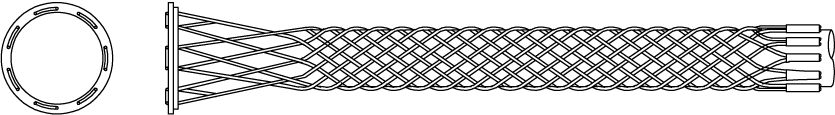

Conduit riser grips are designed to support cables within conduit. Designed to match standard conduit sizes. These grips come in single and double weave as indicated in the chart below. Also available in Split Ring design for supporting cable already installed or when the end of the cable is not available.
Call 888-685-9478 for additional sizes and styles.
Cable dia (in) / Length (in) | ||||||||||||||||||
- | 0.50-0.63 (8) | 0.63-0.75 (9) | 0.75-1.00 (11) | 1.00-1.25 (12) | 1.25-1.50 (12) | 1.50-1.75 (14) | 1.75-2.00 (15) | 2.0-2.5 (17) | 2.0-3.0 (17) | 2.5-3.0 (18) | 2.5-3.5 (19) | 3.0-3.5 (20) | 3.5-4.0 (18) | 3.5-4.0 (21) | 3.5-4.5 (20) | 4.0-4.5 (21) | 4.5-5.0 (27) | 4.5-5.0 (27) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conduit size (in) | ||||||||||||||||||
0.75 | ZCS2690 (530) | |||||||||||||||||
1 | ZCS2691 (490) | ZCS2694 (790) | ||||||||||||||||
1.25 | ZCS2692 (450) | ZCS2695 (740) | ZCS2698 (1,030) | |||||||||||||||
1.5 | ZCS2696 (690) | ZCS2699 (970) | ZCS2701 (1,610) | |||||||||||||||
2 | ZCS2693 (370) | ZCS2697 (640) | ZCS2700 (920) | ZCS2702 (1,520) | ZCS2704 (1,610) | |||||||||||||
2.5 | ZCS2171 (870) | ZCS2705 (1,510) | ZCS2707 (1,610) | ZCS2708 (2,150) | ||||||||||||||
3 | ZCS2703 (1,340) | ZCS2706 (1,400) | ZCS2709 (1,490) | ZCS2710 (1,990) | ZCS2711 (3,260) | |||||||||||||
3.5 | ZCS2714 (2,970) | ZCS2716 (3,260) | ||||||||||||||||
4 | ZCS2712 (1,670) | ZCS2713 (2,680) ZCS4500* (2,722) | ZCS2715 (2,890) ZCS4501* (2,722) | ZCS4282 (4,080) SPLIT ROD | ZCS2717 (4,080) | |||||||||||||
4.5 | ZCS3709 (10,500) | |||||||||||||||||
5 | ZCS5645* (2,150) | ZCS2719 (2,150) | ZCS2721 (2,860) ZCS4502* (2,722) | ZCS5646* (3,130) | ZCS2723 (3,130) ZCS3200* (10,000) ZCS4283 (3,080) SPLIT ROD | ZCS4277 (3,130) | ||||||||||||
6 | ZCS2722 (2,240) | ZCS2724 (2,240) | ZCS5647 (2,240) | ZCS4755 (2,240) | ZCS3259 (4,995) | ZCS4284 (4,995) |
Note:
* indicates Double Weave
Fitted with an adjustable eye for easy and secure attachment, where the end of the cable is not accessibl...
Fitted with an adjustable eye for easy and secure attachment, where the end of the cable is not accessibl...
Fitted with an adjustable eye for easy and secure attachment, where the end of the cable can be inserted ...
Our range is continually developing and expanding - plus we frequently undertake custom engineering design - so if you don’t see the exact product you need, please contact us with your exact requirements.
