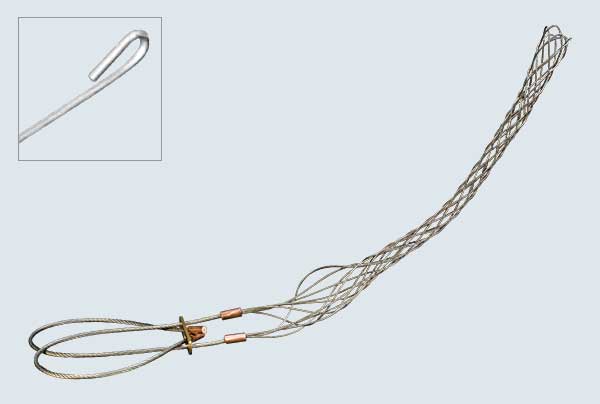

Fitted with an adjustable eye for easy and secure attachment, where the end of the cable is not accessible. Made from 304 Stainless Steel.
Slingco Part No. | Range (mm) | Lattice Length (mm) | Approx. Break Load (kg) |
---|---|---|---|
ZCS2683 | 12 - 16 | 216 | 240 |
ZCS2684 | 16 - 19 | 216 | 360 |
ZCS2685 | 19 - 25 | 267 | 460 |
ZCS2686 | 25 - 31 | 317 | 730 |
ZCS2687 | 31 - 38 | 368 | 730 |
ZCS2688 | 38 - 44 | 394 | 730 |
Slingco Part No. | Range (in) | Lattice Length (in) | Approx. Break Load (lb) |
---|---|---|---|
ZCS2683 | 0.50 - 0.63 | 8.5 | 530 |
ZCS2684 | 0.63 - 0.75 | 8.5 | 790 |
ZCS2685 | 0.75 - 1.00 | 10.5 | 1,020 |
ZCS2686 | 1.00 - 1.25 | 12.5 | 1,610 |
ZCS2687 | 1.25 - 1.50 | 14.5 | 1,610 |
ZCS2688 | 1.50 - 1.75 | 15.5 | 1,610 |
Fitted with an adjustable eye for easy and secure attachment, where the end of the cable is not accessibl...

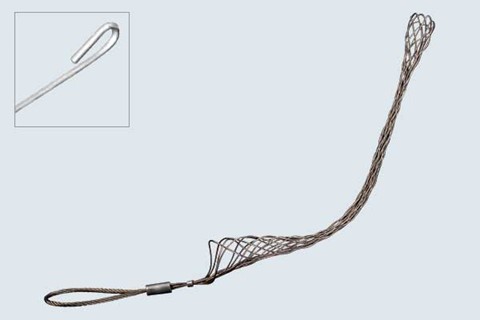

Ideal for several support points along the same cable when the cable ends are not accessible. Made from 3...

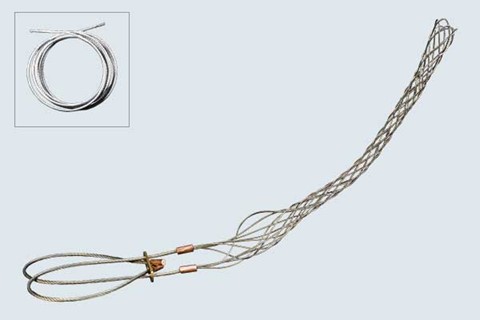

Fitted with an adjustable eye for easy and secure attachment, where the end of the cable can be inserted ...
Our range is continually developing and expanding - plus we frequently undertake custom engineering design - so if you don’t see the exact product you need, please contact us with your exact requirements.
