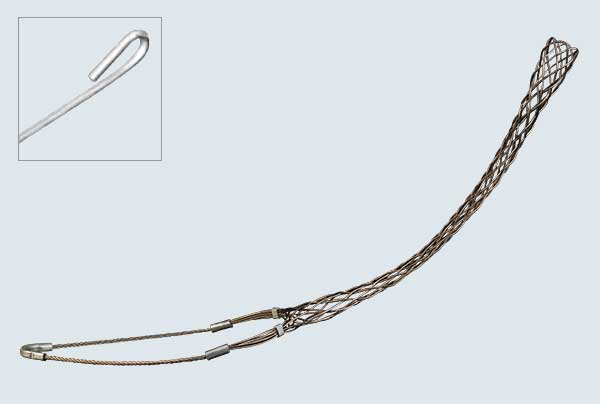

Single Eye Split Mesh Rod Closing Cable Support Grips

Features and benefits

  • Made from 304 stainless steel
  • Designed for use when the end of the cable is not accessible

Similar to the lace up grip, in 304 Stainless Steel, but in this design it is closed by inserting a metal rod down the length of the grip. For when end of cable is not available.

Slingco Part No. Range (mm) Lattice Length (mm) Approx. Break Load (kg)
ZCS236212 - 16247255
ZCS236316 - 19247400
ZCS216219 - 25331470
ZCS216325 - 31344770
ZCS216431 - 38382770
ZCS216538 -44420770
ZCS216644 - 505091,040
ZCS216750 - 635351,540
ZCS216863 - 766111,540
ZCS216976 - 896622,265
ZCS237289 - 1027382,265

A note about dimensions and tolerances

Slingco Part No. Range (in) Lattice Length (in) Approx. Break Load (lb)
ZCS23620.50 - 0.639.7567
ZCS23630.63 - 0.759.7890
ZCS21620.75 - 1.00131,040
ZCS21631.00 - 1.2513.51,700
ZCS21641.25 - 1.50151,700
ZCS21651.50 - 1.7516.51,700
ZCS21661.75 - 2.00202,300
ZCS21672.00 - 2.50213,400
ZCS21682.50 - 3.00243,400
ZCS21693.00 - 3.50265,000
ZCS23723.50 - 4.00295,000

A note about dimensions and tolerances
