Cable Drum Rotator

Cable drum rotator

Get in touch

Download info sheet

Save for later

Features and benefits

  • Pressed steel construction
  • Ideal for where space is limited.
  • 2.36 in diameter zinc plated rollers
  • Sealed roller bearings fitted
  • Spring loaded shafts for easy replacement/adjustment
  • Capacity 440 lb
  • Max / min drum size 31.5 / 11.8 in
  • Drum Width 17.72 mm
  • Zinc plated finish
  • Weight: 23.15 lb

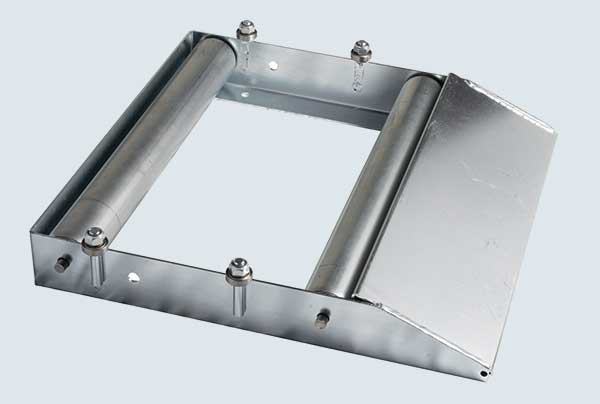

This is a  compact light weight Cable Drum Rotator.  Drums are simply rolled up the ramp on to the adjustable rollers to allow it to spin freely.
Cable Drum Rotator

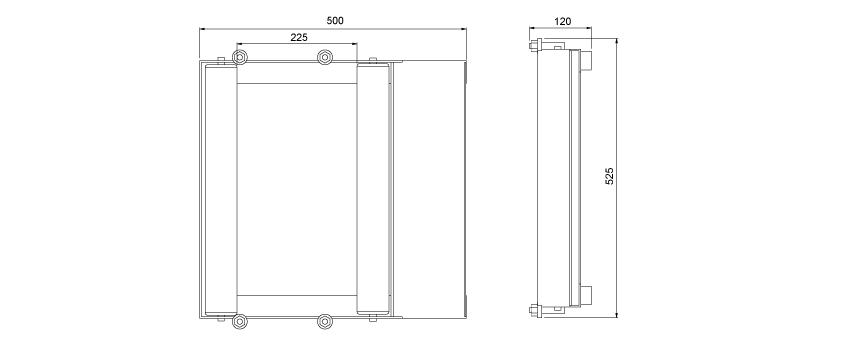

Slingco Part No. Base Footprint (mm) Height (mm) Max Capacity (kg)
ZGP8267500 x 525120200

A note about dimensions and tolerances

Slingco Part No. Base Footprint (in) Height (in) Max Capacity (lb)
ZGP826719.68 x 20.664.72440

A note about dimensions and tolerances

Related products

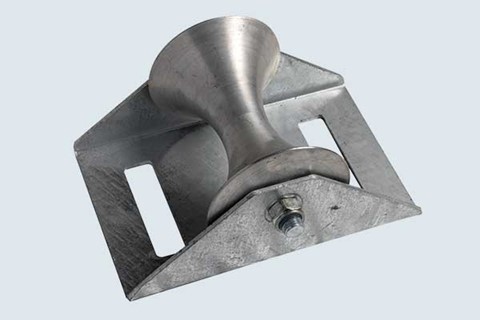

Heavy duty straight line cable laying roller

The diablo is machined with a 107mm radius giving a maximum capacity of 214mm diameter.

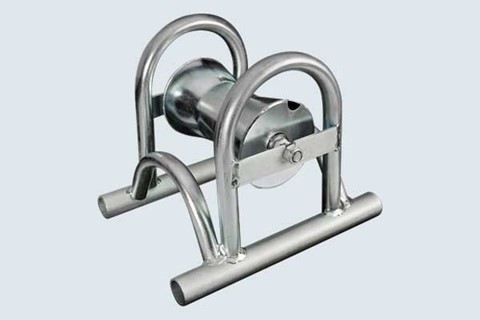

Bridge type cable laying rollers

They are of steel construction with zinc plating for general purpose cable installation work in trenches....

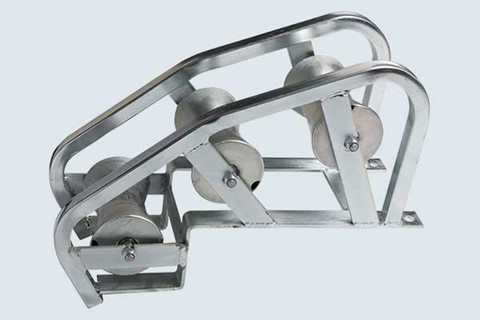

Edge mount manhole lead in cable laying rollers
