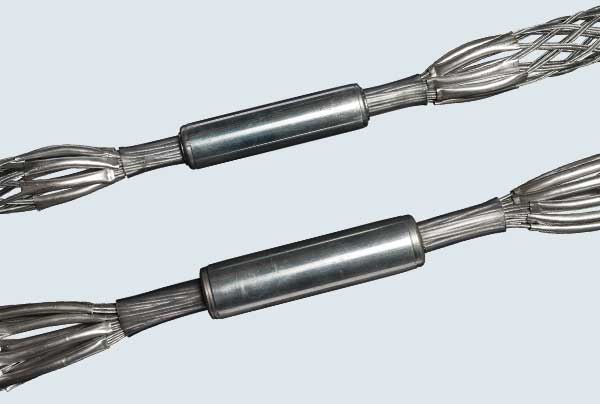

Splicing Grips - Rotating Barrel

Features and benefits

  • Eliminates twist
  • Wide range of options (0.25" - 4.25")

Slingco Rotating Barrel Swivel grips have a swivel barrel that rotates when being used in straight line pulling applications to remove torsion.

Do not use for overhead line work. Two grips and a swivel are recommended for overhead line pulls.

Please note: rotating barrel should not be used over a pulley as it may be too long to clear turns.

Splicing grips rotating barrel

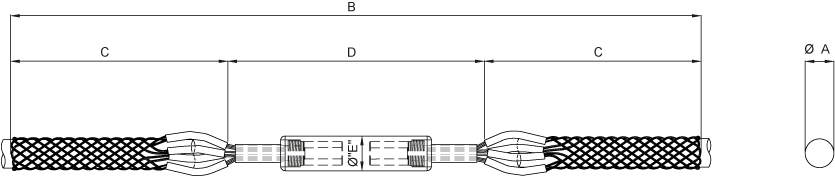

Slingco Part No. Range (mm) Ø A Length (mm) B Length (mm) C Length (mm) D Length (mm) Ø E Length (mm) Approx. Break Load (kg)
ZCS35056-139.51,680755170231,964
ZCS350613 - 25192,2301,01520025.43,304
ZCS350725 - 38322,030895240364,530
ZCS350838 - 5144.51,830795240365,357
ZCS350951 - 7060.52,180940300417,142
ZCS351070 - 90802,7301,19534048.58,928
ZCS351189 - 10898.52,6501,13039048.510,714

A note about dimensions and tolerances

Slingco Part No. Range (in) Ø A Length (in) B Length (in) C Length (in) D Length (in) Ø E Length (in) Approx. Break Load (lb)
ZCS35050.25 -0.500.3766.129.76.70.94,400
ZCS35060.50 - 1.000.7587.840.07.91.07,400
ZCS35071.00 - 1.501.2579.935.29.51.410,000
ZCS35081.50 - 2.001.7572.031.39.51.412,000
ZCS35092.00 - 2.752.3885.837.011.81.616,000
ZCS35102.75 - 3.503.15107.547.013.31.920,000
ZCS35113.50 - 4.253.87104.344.515.31.924,000

A note about dimensions and tolerances

Related products

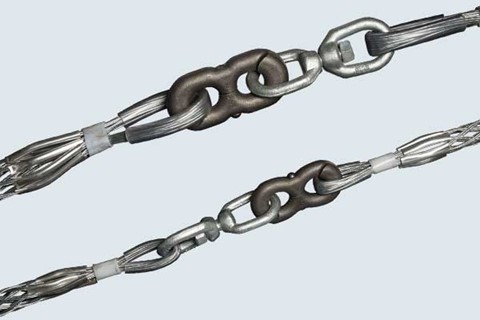

Splicing grips rotating swivel link

Slingco Rotating Swivel Link Grips are perfect for stringing replacement wire and cable on equipment and ...

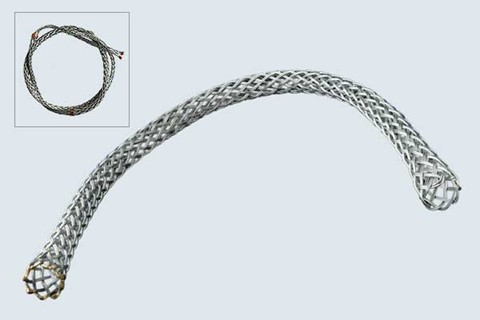

O type open ended cable grips
