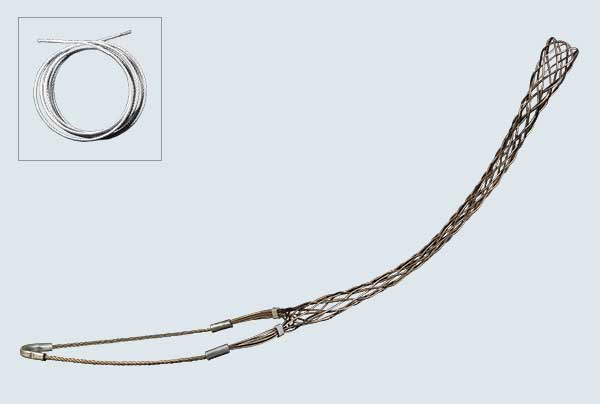

Single Eye Split Mesh Lace Closing Support Grips

Features and benefits

  • Made from 304 stainless steel
  • Designed for use when the end of the cable is not accessible

In 304 stainless steel. Split mesh is for when end of cable is not available.

Slingco Part No. Range (mm) Lattice Length (mm) Approx. Break Load (kg)
ZCS190412 - 16247255
ZCS190516 - 19247358
ZCS190619 - 25331470
ZCS190725 - 31344770
ZCS190831 - 38382770
ZCS190938- -44420770
ZCS191044 - 505091,040
ZCS191150 - 635351,540
ZCS191263 - 766111,540
ZCS191376 - 896622,265
ZCS191489 - 1027382,265

A note about dimensions and tolerances

Slingco Part No. Range (in) Lattice Length (in) Approx. Break Load (lb)
ZCS19040.50 - 0.639.7567
ZCS19050.63 - .0.759.7890
ZCS19060.75 - 1.00131,040
ZCS19071.00 - 1.2513.51,700
ZCS19081.25 - 1.50151,700
ZCS19091.50 - 1.7516.51,700
ZCS19101.75 - 2.00202,300
ZCS19112.00 - 2.50213,400
ZCS19122.50 - 3.00243,400
ZCS19133.00 - 3.50265,000
ZCS19143.50 - 4.00295,000

A note about dimensions and tolerances

Related products

Double eye split mesh lace closing support grips

Double eye split mesh lace closing, in 304 Stainless Steel, for secure attachment and support where the c...

Single eye closed mesh cable support grips

Slingco closed mesh support grip in 304 Stainless Steel. Closed mesh for when end of cable is available.

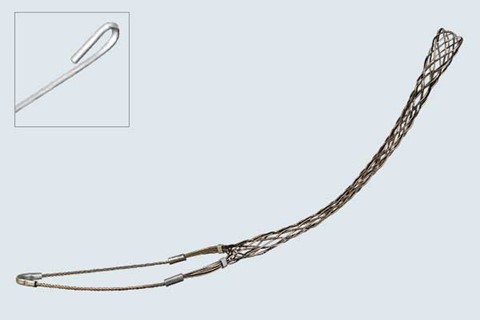

Single eye split mesh rod closing support grips
