Crimper Die Sets

Features and benefits

  • Easy Burndy or Kearney cross reference
  • Fit D3 groove or Kearney Seat
  • W-Dies for 4-6 Ton tools
  • O-Dies for 4-6 Ton tools
  • WH2/WH3 for 12 Ton tools

Dies for 4 - 6 ton or 12 ton crimpers.

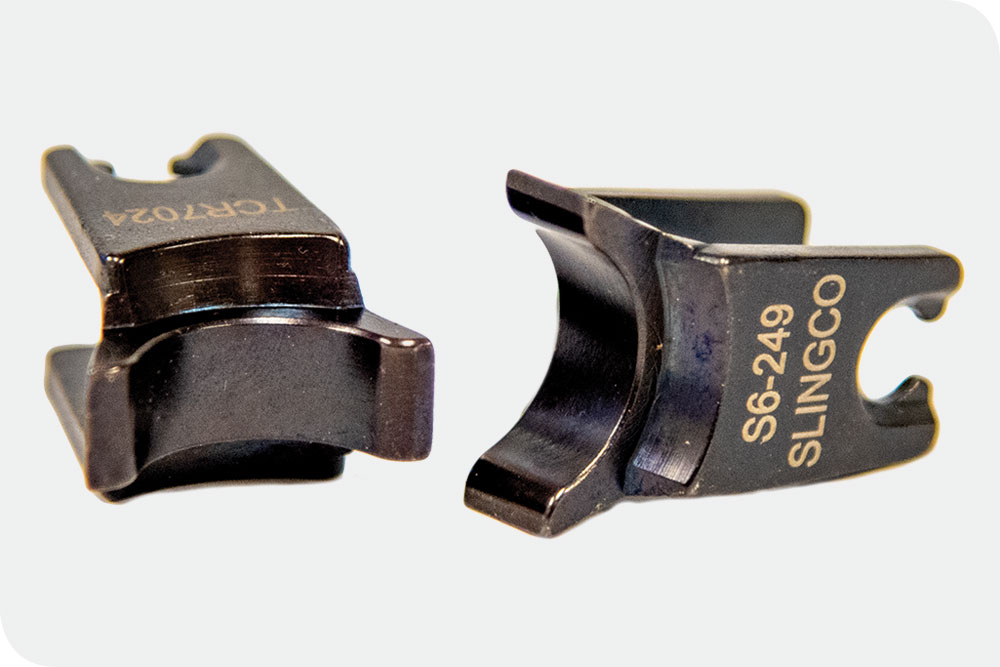

“W” style die inserts for installing taps, splices, and terminal connectors. The “W” die inserts lock securely & easily into place with the positive lock, springloaded die buttons. Fits 'D3' groove.

Slingco offers D3 groove W-Dies as well as Kearney type O-Dies.

12 T dies available. Equivalent to Kearney WH-2 & WH-3 dies.

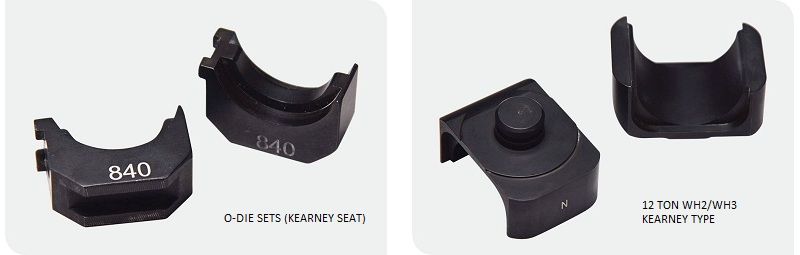

O and WH DIes
Slingco Part No. Slingco Ref. Burndy Equiv.
TCR7020S6-K840WK840
TCR7021S6-BGWBG
TCR7022S6-OWO
TCR7023S6-247W247
TCR7024S6-249W249
TCR7025S6-161W161
TCR7027S6-163W163
TCR7028S6-164W164
TCR7029S6-165W165
TCR7030S6-166W166
TCR7031S6-167W167
TCR7034S6-237W237
TCR7036S6-239W239
TCR7037S6-241W241
TCR7038S6-243W243
TCR7039S6-245W245
TCR7047S6-CWC
TCR7058S6-25RTW25RT
TCR7059S6-26RTW26RT

A note about dimensions and tolerances

Slingco Part No. Slingco Ref. Kearney Die Size
TCR10117O Die - 1/21/2
TCR10118O Die - 1/41/4
TCR10119O Die - 3/83/8
TCR10120O Die - 5/8-15/8-1
TCR10121O Die - 5/165/16
TCR10122O Die - 9/169/16
TCR10123O Die - 11/1611/16
TCR10124O Die - 19/3219/32
TCR10125O Die - 620620
TCR10126O Die - 635635
TCR10127O Die - 747747
TCR10128O Die - 781781
TCR10129O Die - 840840
TCR10130O Die - 845845
TCR10131O Die - BB
TCR10132O Die - 3/163/16
TCR10133O Die - TT
TCR10134O Die - DD
TCR10135O Die - JJ
TCR10136O Die - KK
TCR10137O Die - OO
TCR10138O Die - PP
TCR10139O Die - 737737

A note about dimensions and tolerances

Slingco Part No. Slingco Ref. Kearney Die Size
TCR09864WH2/WH3 Die - BKTBKT
TCR09865WH2/WH3 Die - CC
TCR09866WH2/WH3 Die - DD
TCR09867WH2/WH3 Die - NN
TCR09868WH2/WH3 Die - OO
TCR09869WH2/WH3 Die - PP
TCR09870WH2/WH3 Die - UU
TCR09871WH2/WH3 Die - 510510
TCR09873WH2/WH3 Die - 635635
TCR09874WH2/WH3 Die - 727727
TCR09875WH2/WH3 Die - 737737
TCR09876WH2/WH3 Die - 747747
TCR09877WH2/WH3 Die - 781781
TCR09878WH2/WH3 Die - 840840
TCR09880WH2/WH3 Die - 5/165/16
TCR09882WH2/WH3 Die - 1/21/2
TCR09883WH2/WH3 Die - 9/169/16
TCR09885WH2/WH3 Die - 5/85/8
TCR09887WH2/WH3 Die - 15/1615/16
TCR09890WH2/WH3 Die - 15/16H15/16H
TCR09892WH2/WH3 Die - 1-1/8-11-1/8-1
TCR09893WH2/WH3 Die - 1-1/8-21-1/8-2
TCR09895WH2/WH3 Die - 1-1/2H1-1/2H
TCR09896WH2/WH3 Die - 840H Wide840H Wide

A note about dimensions and tolerances

Don't see the product you need?

Our range is continually developing and expanding - plus we frequently undertake custom engineering design - so if you don’t see the exact product you need, please contact us with your exact requirements.
