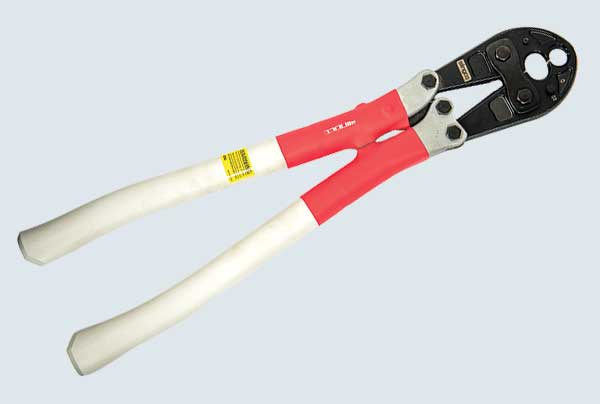

Manual Crimper

Features and benefits

  • ‘D3’ groove allows ‘W’ style die inserts for installing taps, splices, and terminal connectors
  • Kearney Seat Tool accepts Kearney type dies
  • Ergonomic handles for comfortable use and maximum leverage

Slingco’s Mechanical Crimping Tools have been created to complete the variety of utility distribution service connections that need to be made on the line, pole, and home. Our crimping tools have been designed to provide reliable crimps installing full-tension or non-tension connectors.

Slingco’s Mechanical Crimping Tool’s ‘D3’ groove allows ‘W’ style die inserts for installing taps, splices, and terminal connectors. The ‘W’ die inserts lock securely and easily into place with the positive lock, spring-loaded die buttons. Slingco also offers a Mechanical Crimping Tool that accepts Kearney type dies.

Our Mechanical Crimping Tools also have ergonomic handles for comfortable use and maximum leverage when making critical connections.

Slingco Part No. Tool Type Crimp Force (lb) Length (in) Weight (lb)
TCR7002O&D9,00025.757
TCR7004BG&D9,00025.757
TCR087355/8 Nose Die & Kearney Seat (Accepts ‘Kearney’ type)9,00025.757

A note about dimensions and tolerances

Slingco Part No. Slingco Ref. Burndy Equiv.
TCR7020S6-K840WK840
TCR7021S6-BGWBG
TCR7022S6-OWO
TCR7023S6-247W247
TCR7024S6-249W249
TCR7025S6-121W121
TCR7027S6-163W163
TCR7028S6-164W164
TCR7029S6-165W165
TCR7030S6-166W166
TCR7031S6-167W167
TCR7034S6-237W237
TCR7036S6-239W239
TCR7037S6-241W241
TCR7038S6-243W243
TCR7039S6-245W245
TCR7047S6-CWC
TCR7058S6-25RTW25RT
TCR7059S6-26RTW26RT

A note about dimensions and tolerances

Slingco Part No. Slingco Ref. Kearney Die Size
TCR10117O Die - 1/21/2
TCR10118O Die - 1/41/4
TCR10119O Die - 3/83/8
TCR10120O Die - 5/8-15/8-1
TCR10121O Die - 5/165/16
TCR10122O Die - 9/169/16
TCR10123O Die - 11/1611/16
TCR10124O Die - 19/3219/32
TCR10125O Die - 620620
TCR10126O Die - 635635
TCR10127O Die - 747747
TCR10128O Die - 781781
TCR10129O Die - 840840
TCR10130O Die - 845845
TCR10131O Die - BB
TCR10132O Die - 3/163/16
TCR10133O Die - TT
TCR10134O Die - DD
TCR10135O Die - JJ
TCR10136O Die - KK
TCR10137O Die - OO
TCR10138O Die - PP
TCR10139O Die - 737737

A note about dimensions and tolerances

Don't see the product you need?

Our range is continually developing and expanding - plus we frequently undertake custom engineering design - so if you don’t see the exact product you need, please contact us with your exact requirements.
