Stainless Steel Connector/Box Grips

Features and benefits

  • Dual weave lattice
  • Made from 304 Stainless steel
  • Reduces strain on electrical termination point connections

Dual Weave – these grips are designed with a ring to support electric cabling from termination point to reduce strain on the connections. 304 stainless steel.

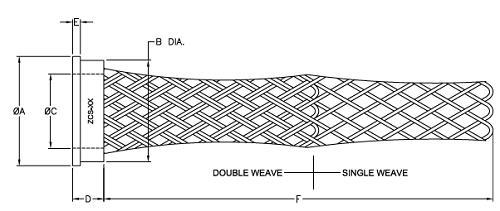

ConnectorDwg
Slingco Part No. Cable dia min (mm) Cable dia max (mm) Ø A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Approx. Breaking Strength (kg)
ZCS22085.16.431.828.47.97.13.276225
ZCS22097.99.531.828.411.17.13.2102340
ZCS221010.412.731.828.414.37.13.2127340
ZCS221112.715.931.828.417.47.13.2152540
ZCS221215.519.131.828.420.67.13.2178540
ZCS22131822.231.828.423.87.13.2178450
ZCS221419.623.831.828.424.15.6-203360
ZCS22157.99.544.541.111.17.13.2102225
ZCS221610.412.744.541.114.37.13.2127340
ZCS221712.715.944.541.117.47.13.2152450
ZCS221815.519.144.541.120.67.13.2178450
ZCS22191822.244.541.123.87.13.2190450
ZCS222020.825.444.541.1277.13.2215450
ZCS222123.228.644.541.130.17.13.2229680
ZCS222225.931.844.541.133.37.13.2254450
ZCS22233036.544.541.136.85.6-265225
ZCS222412.715.957.253.817.47.13.2152450
ZCS22251822.257.253.823.87.13.2178450
ZCS222623.228.657.253.830.17.13.2229680
ZCS222725.931.857.253.833.37.13.2254815
ZCS22283138.157.253.839.77.13.2279815
ZCS222936.344.557.253.8467.13.2330315
ZCS22303049.257.253.849.55.6-365155
ZCS223120.825.469.966.5277.13.2215450
ZCS223225.931.869.966.533.37.13.2254680
ZCS22333138.169.966.539.77.13.2279680
ZCS223436.344.569.966.5467.13.2330815
ZCS223541.750.869.966.552.47.13.2381815
ZCS223646.757.269.966.558.77.13.2406680
ZCS223752.462.769.966.563.25.6-444680
ZCS223834.944.582.679.2467.13.2330905
ZCS223944.550.882.679.252.47.13.2381905
ZCS224046.757.282.679.258.77.13.2406905
ZCS22415463.582.679.265.17.13.2444905
ZCS224263.57382.679.274.15.6-483905

A note about dimensions and tolerances

Slingco Part No. Cable dia min (in) Cable dia max (in) Ø A (in) B (in) C (in) D (in) E (in) F (in) Approx. Breaking Strength (lb)
ZCS22080.20.251.251.120.310.2810.1253500
ZCS22090.310.3751.251.120.4370.2810.1254750
ZCS22100.410.51.251.120.5620.2810.1255750
ZCS22110.50.6251.251.120.6870.2810.12561,200
ZCS22120.610.751.251.120.8120.2810.12571,200
ZCS22130.710.8751.251.120.9370.2810.1257.51,000
ZCS22140.770.9371.251.120.9480.219-8800
ZCS22150.310.3751.751.620.4370.2810.1254500
ZCS22160.410.51.751.620.5620.2810.1255750
ZCS22170.50.6251.751.620.6870.2810.12561,000
ZCS22180.610.751.751.620.8120.2810.12571,000
ZCS22190.710.8751.751.620.9370.2810.1257.51,000
ZCS22200.8211.751.621.0620.2810.1258.51,000
ZCS22210.9151.1251.751.621.1870.2810.12591,500
ZCS22221.021.251.751.621.3120.2810.125101,000
ZCS22231.181.4371.751.621.4480.219-10.5500
ZCS22240.50.6252.252.120.6870.2810.12561,000
ZCS22250.710.8752.252.120.9370.2810.1257.51,000
ZCS22260.9151.1252.252.121.1870.2810.12591,500
ZCS22271.021.252.252.121.3120.2810.125101,800
ZCS22281.221.52.252.121.5620.2810.125111,800
ZCS22291.431.752.252.121.8120.2810.12513700
ZCS22301.181.9372.252.121.9480.219-14.5350
ZCS22310.8212.752.621.0620.2810.1258.51,000
ZCS22321.021.252.752.621.3120.2810.125101,500
ZCS22331.221.52.752.621.5620.2810.125111,500
ZCS22341.431.752.752.621.8120.2810.125131,800
ZCS22351.6422.752.622.0620.2810.125151,800
ZCS22361.842.252.752.622.3120.2810.125161,500
ZCS22372.0622.4692.752.622.4890.219-17.51,500
ZCS22381.3751.753.253.121.8120.2810.125132,000
ZCS22391.7523.253.122.0620.2810.125152,000
ZCS22401.842.253.253.122.3120.2810.125162,000
ZCS22412.1252.53.253.122.5620.2810.12517.52,000
ZCS22422.52.8753.253.122.9180.219-192,000

A note about dimensions and tolerances
