Dust-Tight Cord Grips

Features and benefits

  • Available with straight male, 90 degree male, 45 degree male and straight female connections.
  • Provide bend support and pull out resistance

Dust-Tight Cord Grips provide strain relief and bend support for cables running into machinery and connection boxes. Select the deluxe grip that fits the NPT size being connected to. Available with Straight Male, 90 degree Male, 45 degree Male and Straight Female connections. The wire mesh grip is sized to provide bend support and pull out resistance for the cable range listed.

Slingco Part No. (Insulated) Slingco Part No. (Non-insulated) Range (mm) NPT Size (in)
ZCS7674ZCS77565.6 - 8.10.5
ZCS7675ZCS77577.6 - 10.90.5
ZCS7676ZCS775810.1 - 13.70.5
ZCS7677ZCS775913.2 - 18.50.75
ZCS7678ZCS776017.8 24.61
ZCS7679ZCS776123.8 - 31.81.25
ZCS768030.5 - 38.11.5
ZCS768138.1 - 44.52
ZCS768241.1 - 50.82.5
ZCS768350.8 - 62.22.5

A note about dimensions and tolerances

Slingco Part No. (Insulated) Slingco Part No. (Non-insulated) Range (in) NPT Size (in)
ZCS7674ZCS77560.22 - 0.320.5
ZCS7675ZCS77570.30 - 0.430.5
ZCS7676ZCS77580.40 - 0.540.5
ZCS7677ZCS77590.52 - 0.730.75
ZCS7678ZCS77600.70 - 0.971
ZCS7679ZCS77610.94 - 1.251.25
ZCS76801.20 - 1.501.5
ZCS76811.40 - 1.752
ZCS76821.62 - 2.002.5
ZCS76832.00 - 2.452.5

A note about dimensions and tolerances

Related products

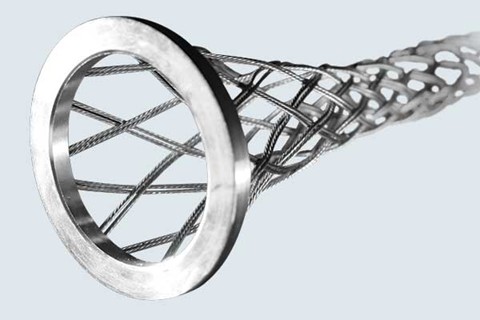

Stainless steel connector box grips

Dual Weave – these grips are designed with a ring to support electric cabling from termination point to r...

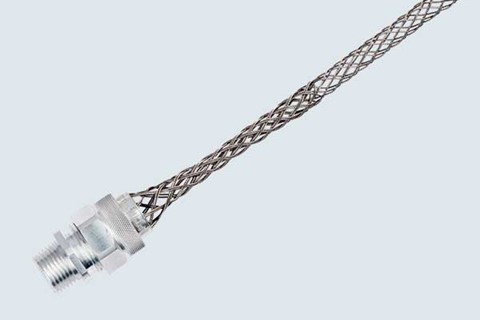

Deluxe cord grips
