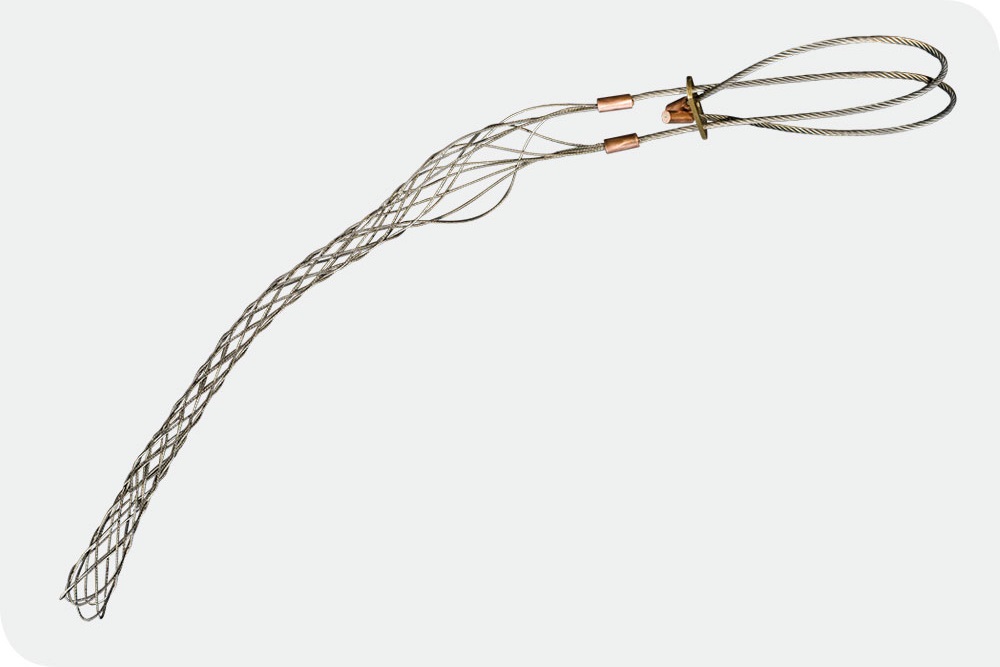

Locking Bale Bus/Serivce Drop Grip

Features and benefits

  • Locking Bale/Universal Eye for attaching to pipe, conduit
  • Range accommodates cables from 0.22" to 1.25"
  • Simple to open or secure eye wires

These locking bale (universal eye) Bus/Service drop grips are perfect for supporting cables when a simple attachment point is not available. The wires of the locking bale may be looped over a pipe, conduit or beam and secured in the eye locking plate. This provides a secure support for the cable.

Just run the power or other cable through the mesh of the grip and make your connection. Then position the grip to support the cable at the most advantageous position to relieve strain and resist pull out.

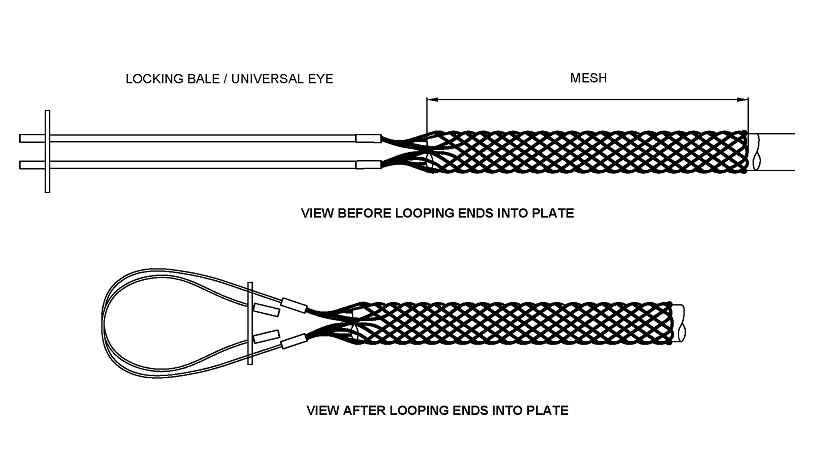

LockingBaleBusServiceDwg
Slingco Part No. Range (in) Bale Length (in) Mesh Length (in) Approx. Break Load (lb) Wire Material
ZCS85880.22 - 0.32123.51100Galvanized
ZCS85890.30 - 0.43124.51100Galvanized
ZCS85900.41 - 0.56125.01100Galvanized
ZCS85910.53 - 0.73156.51100Galvanized
ZCS85920.70 - 0.85168.51900Galvanized
ZCS85930.82 - 1.0168.51900Galvanized
ZCS85940.96 - 1.2519111900Galvanized

A note about dimensions and tolerances

Slingco Part No. Range (mm) Bale Length (mm) Mesh Length (mm) Approx. Break Load (kg) Wire Material
ZCS85885.6 - 8.130589498Galvanized
ZCS85897.5 - 10.9305114498Galvanized
ZCS859010.4 - 14.2305127498Galvanized
ZCS859113.5 - 18.5381165498Galvanized
ZCS859218 - 22406216861Galvanized
ZCS859321 - 25406216861Galvanized
ZCS859424 - 32432279861Galvanized

A note about dimensions and tolerances

Don't see the product you need?

Our range is continually developing and expanding - plus we frequently undertake custom engineering design - so if you don’t see the exact product you need, please contact us with your exact requirements.
