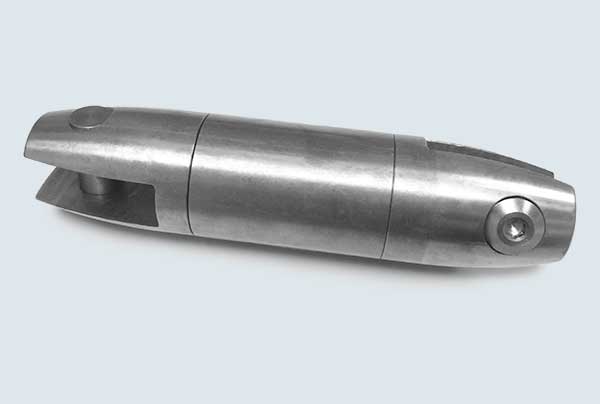

Line Pulling Swivel - Galvanized

Features and benefits

  • releases torsion
  • Prevents damage to cable or grip
  • suitable for underground or overhead applications
  • straight line pulling only

Slingco Line Swivels are designed to the highest specifications for underground and overhead pulling applications. All swivels are stringently quality tested and inspected to ensure optimum reliability and performance.

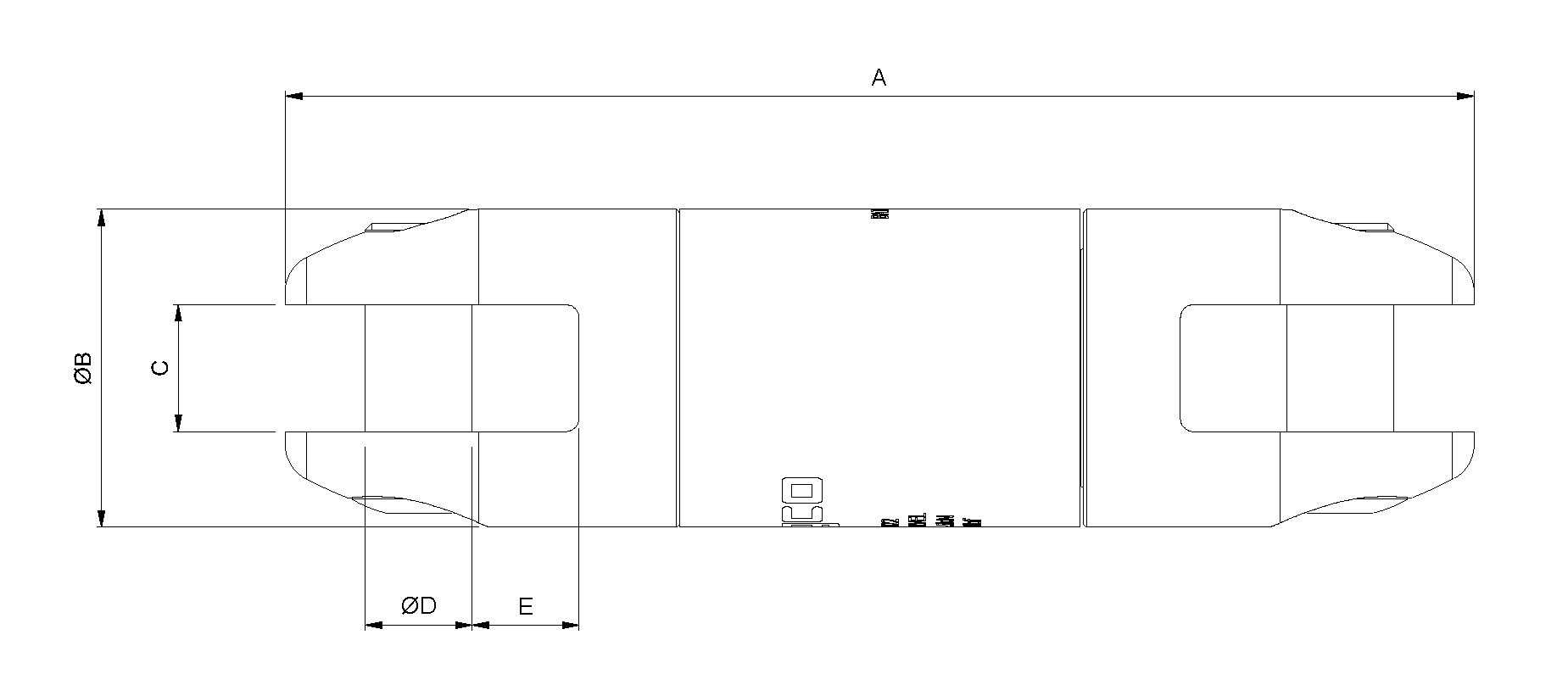

BullNoseDiagram
Slingco Part No. Safe Working Load - 3:1 (lb) Safe Working Load - 5:1 (lb) A Length (in) Ø B (in) C (in) Ø D Pin (in) E Recess (in) Weight (lb)
ZSW26494,00024004.741.260.610.370.371.01
ZSW29298,0004,8005.381.50.630.610.431.75
ZSW612210,0006,00071.870.750.630.633.72
ZSW612316,0009,60010.22.4411.120.879.19
ZSW285730,00018,00011.132.511.130.8710.44

Note:
3:1 factor of safety and 5:1 factor of safety provided for reference only

A note about dimensions and tolerances

Slingco Part No. Safe Working Load - 3:1 (kN) Safe Working Load - 5:1 (kN) A Length (mm) Ø B (mm) C (mm) Ø D Pin (mm) E Recess (mm) Weight (kg)
ZSW264917.810.6120.53215.513.39.50.46
ZSW292935.521.3136.6381615.5110.80
ZSW612244.526.717847.619.0516161.69
ZSW612371.242.72596225.428.5224.17
ZSW285713480282.663.525.428.62224.74

Note:
3:1 factor of safety and 5:1 factor of safety provided for reference only

A note about dimensions and tolerances

Flexible Eye MU Revolving Eye Approx. breaking strength of cable grip (lb) Cable grip color code Size range O.D. (in) Recommended swivel Safe working load of swivel at 3:1 (lb)
ZCS1710ZCS21777,000Dark green0.25 - 0.50ZSW26494,000
ZCS1711ZCS217810,500Brown0.50 - 0.75ZSW29295,000
ZCS1712ZCS217914,100Light blue0.75 - 1.00ZSW29295,000
ZCS1713ZCS218025,000Gold1.00 - 1.25ZSW612210,000
ZCS1714ZCS218131,000Black1.25 - 1.50ZSW612210,000
ZCS1715ZSC218231,000Red1.50 - 1.75ZSW612210,000
ZCS1716†ZSC2183*43,000*-49,000†Dark blue1.75 - 2.25ZSW612316,000

Note:
The above is intended as a rough guide. The recommended working load should be determined by the competent person(s) using the cable grip and/or Slingco swivel.

A note about dimensions and tolerances

Flexible Eye MU Revolving Eye Approx. breaking strength of cable grip (kN) Cable grip color code Size range O.D. (mm) Recommended swivel Safe working load of swivel at 3:1 (kN)
ZCS1710ZCS217731.1Dark green06-DecZSW264917.8
ZCS1711ZCS217846.7BrownDec-19ZSW292922.2
ZCS1712ZCS217962.7Light blue19 - 25ZSW292922.2
ZCS1713ZCS2180111.2Gold25 - 32ZSW612244.5
ZCS1714ZCS2181137.9Black32 - 38ZSW612244.5
ZCS1715ZSC2182137.9Red38 - 44ZSW612244.5
ZCS1716†ZSC2183*191.3 - 218Dark blue44 - 57ZSW612371.2

Note:
The above is intended as a rough guide. The recommended working load should be determined by the competent person(s) using the cable grip and/or Slingco swivel.

A note about dimensions and tolerances

Related products

A type high strength cable grips

The strongest grip we produce; can be used for metal wire and synthetic rope pulls. Perfect for overhead ...

MU type multi weave cable grips

This grip’s mulit-weave construction (triple, double, single) is ideal for heavy loads. MU cable grips ar...

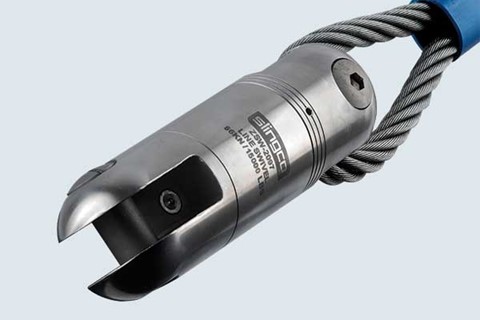

Line pulling swivels standard end
