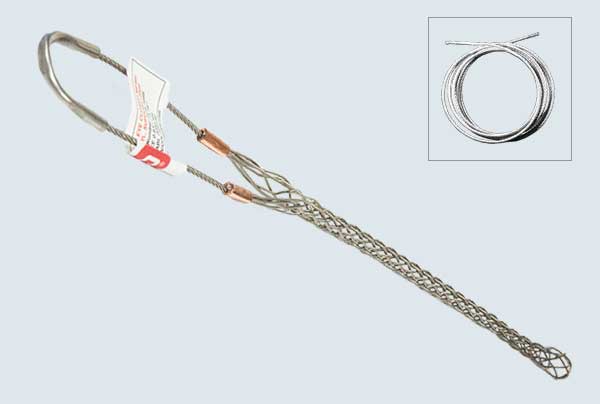

Heavy Duty Support Grips – Single Eye Lace-Up

Features and benefits

  • Made from stainless steel wire
  • Designed for heavier cables
  • Can support multiple cables in a bundle
  • Used when the ends of the cable(s) are not accessible

Heavy Duty support grips made from stainless steel are perfect for supporting heavier cable, conduit or any other cylindrical object. Often used by Utilities and Contractors to support cables transitioning from overhead to underground. One may support multiple cables in one grip. The overall diameter of the cable bundle should fit within the listed range.

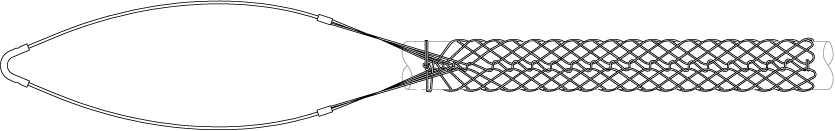

Heavy duty support grips single eye lace up
Slingco Part No. Range (mm) Lattice Material Lattice Length (mm) Approx. Break Load (kg)
ZCS690713 - 16Stainless Steel279621
ZCS690816 - 19Stainless Steel318944
ZCS690919 - 25Stainless Steel318944
ZCS691025 – 32Stainless Steel3431,211
ZCS691132 – 38Stainless Steel3432,037
ZCS691238 – 44Stainless Steel4702,037
ZCS691344 – 51Stainless Steel5722,269
ZCS691451 – 63Stainless Steel5724,056
ZCS691563 – 76Stainless Steel6354,056
ZCS691676 – 87Stainless Steel7246,089
ZCS691787 – 102Stainless Steel7246,089

A note about dimensions and tolerances

Slingco Part No. Range (in) Lattice Length (in) Lattice Material Approx. Break Load (lb)
ZCS69070.50 - 0.6311316 SS1,370
ZCS69080.63 - 0.7512.5316 SS2,080
ZCS69090.75 - 1.0012.5316 SS2,080
ZCS69101.00 - 1.2513.5316 SS2,670
ZCS69111.25 - 1.5015.5316 SS4,490
ZCS69121.50 - 1.7518.5316 SS4,490
ZCS69131.75 - 2.0022.5316 SS5,000
ZCS69142.00 - 2.5022.5316 SS8,940
ZCS69152.50 - 3.0025316 SS8,940
ZCS69163.00 - 3.5028.5316 SS13,420
ZCS69173.50 - 4.0028.5316 SS13,420

A note about dimensions and tolerances

Don't see the product you need?

Our range is continually developing and expanding - plus we frequently undertake custom engineering design - so if you don’t see the exact product you need, please contact us with your exact requirements.
