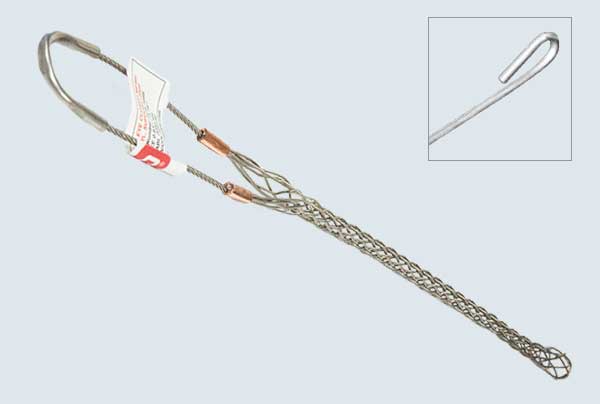

Heavy Duty Support Grips – Single Eye Rod Closing

Features and benefits

  • Made from stainless steel wire
  • Designed for heavier cables
  • Can support multiple cables in a bundle
  • Used when the ends of the cable(s) are not accessible

Heavy Duty support grips made from stainless steel are perfect for supporting heavier cable, conduit or any other cylindrical object. Often used by Utilities and Contractors to support cables transitioning from overhead to underground. One may support multiple cables in one grip. The overall diameter of the cable bundle should fit within the listed range.

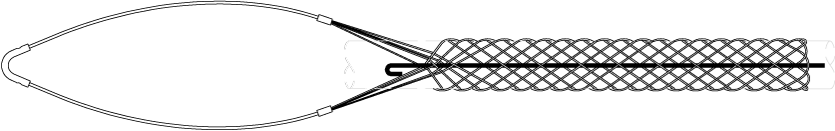

Heavy duty support grips single eye rod closing
Slingco Part No. Range (mm) Lattice Length (mm) Lattice Material Approx. Break Load (kg)
ZCS707613 - 16277Stainless Steel621
ZCS707716 - 19309Stainless Steel944
ZCS707819 - 25345Stainless Steel944
ZCS707925 – 32391Stainless Steel1,211
ZCS708032 – 38417Stainless Steel2,037
ZCS708138 – 44494Stainless Steel2,037
ZCS708244 – 51537Stainless Steel2,269
ZCS708351 – 63654Stainless Steel4,056
ZCS708463 – 76623Stainless Steel4,056
ZCS708576 – 87693Stainless Steel6,089
ZCS708687 – 102914Stainless Steel6,089

A note about dimensions and tolerances

Slingco Part No. Range (in) Lattice Length (in) Lattice Material Approx. Break Load (lb)
ZCS70760.50 - 0.6311304 SS1,370
ZCS70770.63 - 0.7512304 SS2,080
ZCS70780.75 - 1.0014304 SS2,080
ZCS70791.00 - 1.2515304 SS2,670
ZCS70801.25 - 1.5016.5304 SS4,490
ZCS70811.50 - 1.7519.5304 SS4,490
ZCS70821.75 - 2.0021304 SS5,000
ZCS70832.00 - 2.5027304 SS8,940
ZCS70842.50 - 3.0024.5304 SS8,940
ZCS70853.00 - 3.5027304 SS13,420
ZCS70863.50 - 4.0036304 SS13,420

A note about dimensions and tolerances

Don't see the product you need?

Our range is continually developing and expanding - plus we frequently undertake custom engineering design - so if you don’t see the exact product you need, please contact us with your exact requirements.
