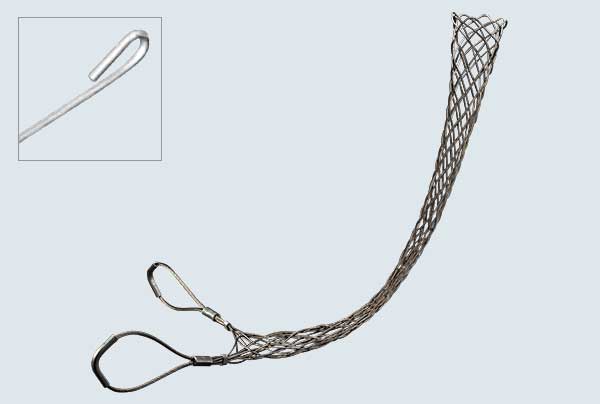

Double Eye Split Mesh Rod Closing Cable Support Grips

Features and benefits

  • Made from 304 stainless steel
  • Designed for 2 connect/support points
  • Use when the end of the cable is not accessible

Double eye split mesh rod closing, in 304 Stainless Steel, for secure attachment and support where the cable end is not accessible.

Slingco Part No. Range (mm) Lattice Length (mm) Lattice Material Approx. Break Load (kg)
ZCS300912 - 16216304 Stainless355
ZCS301016 - 19216304 Stainless355
ZCS301119 - 25266304 Stainless460
ZCS301225 - 31317304 Stainless730
ZCS301331 - 38368304 Stainless730
ZCS301438- -44394304 Stainless730
ZCS301544 - 50419304 Stainless975
ZCS301650 - 63495304 Stainless1,475
ZCS301763 - 76546304 Stainless1,475
ZCS301876 - 89597304 Stainless2,600
ZCS301989 - 102648304 Stainless2,600

A note about dimensions and tolerances

Slingco Part No. Range (in) Lattice Length (in) Lattice Material Approx. Break Load (lb)
ZCS30090.50 - 0.638.5304 Stainless790
ZCS30100.63 - 0.758.5304 Stainless790
ZCS30110.75 - 1.0010.5304 Stainless1,020
ZCS30121.00 - 1.2512.5304 Stainless1,610
ZCS30131.25 - 1.5014.5304 Stainless1,610
ZCS30141.50 - 1.7515.5304 Stainless1,610
ZCS30151.75 - 2.0016.5304 Stainless2,150
ZCS30162.00 - 2.5019.5304 Stainless3,260
ZCS30172.50 - 3.0021.5304 Stainless3,260
ZCS30183.00 - 3.5023.5304 Stainless5,750
ZCS30193.50 - 4.0025.5304 Stainless5,750

A note about dimensions and tolerances
