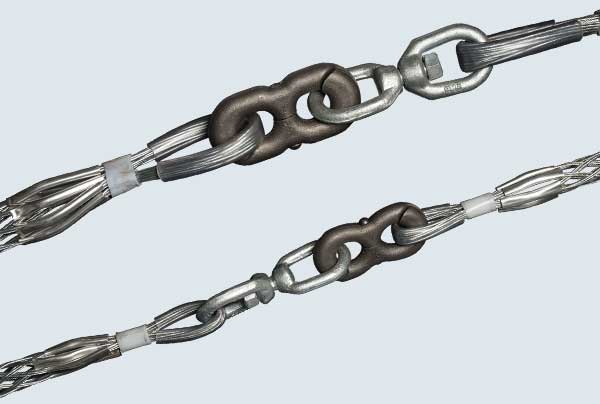

Splicing Grips - Rotating Swivel Link

Features and benefits

  • Suitable for drilling rigging systems
  • Link opens for easy installation and adjustment
  • Can be used with different sized grips on each side

Slingco Rotating Swivel Link Grips are perfect for stringing replacement wire and cable on equipment and in drilling or rigging systems. Not recommended for use in overhead stringing applications. Use the existing cable as a pull wire to string the replacement cable. These grips are available with differently sized grips for each side. Call for assistance in selecting the proper grip. Link opens for easy installation and adjustment. Made of Galvanized Steel.

Splicing Grips - Rotating Swivel Link

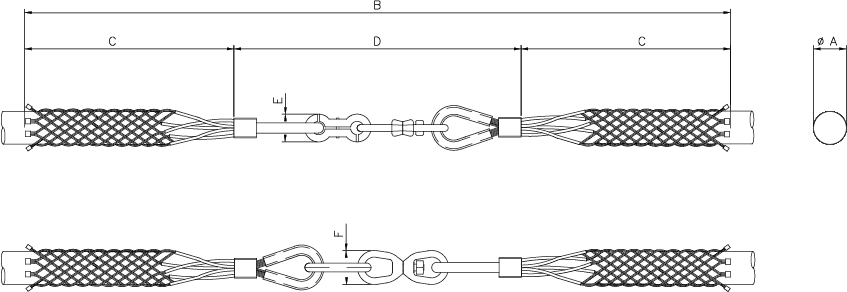

Slingco Part No. Range (mm) Ø A Length (mm) B Length (mm) C Length (mm) D Length (mm) E Length (mm) F Length (mm) Approx. Break Load (kg)
ZCS34936 - 139.52,5421,12728822321,089
ZCS349413 - 25192,6211,16030135321,599
ZCS349525 - 38322,6541,16033441412,300
ZCS349638 - 5144.52,6731,16035341513,629
ZCS349751 - 7060.52,6731,16035341514,537
ZCS349870 - 90802,6731,16035341514,537
ZCS349989 - 10898.52,7531,20035341514,537

A note about dimensions and tolerances

Slingco Part No. Range (in) B Length (in) C Length (in) D Length (in) E Length (in) F Length (in) Approx. Break Load (lb)
ZCS34930.25 - 0.50100.044.311.30.871.252,400
ZCS34940.50 - 1.00103.245.711.81.381.253,526
ZCS34951.00 - 1.50104.545.713.11.611.615,070
ZCS34961.50 - 2.00105.245.713.91.612.08,000
ZCS34972.00 - 2.75105.245.713.91.612.010,000
ZCS34982.75 - 3.50105.245.713.91.612.010,000
ZCS34993.50 - 4.25108.445.713.91.612.010,000

A note about dimensions and tolerances

Related products

O type open ended cable grips

Ideal for joining two cables to form a continuous loop. Typical application: replacement of lift cables, ...

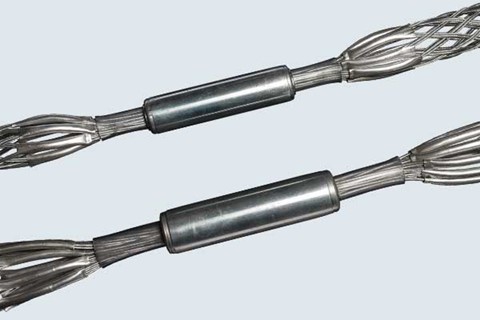

Splicing grips rotating barrel
