Compact Bridge Type Cable Laying Roller

Compact bridge type cable laying roller

Get in touch

Download info sheet

Save for later

Features and benefits

  • Heavy duty tubular frame straight line bridge roller
  • Fitted with hoops to fit over previously laid cables
  • 76mm diameter aluminium roller
  • Oil impregnated maintenance free bushes fitted
  • Bright zinc plated finish
  • 90mm diameter cable capacity
  • Weight 2.5Kg

This is a compact cable roller for use in narrow trenches and/or in confined areas.

* The specification can be adjusted, if required,  to suit your individual requirements.

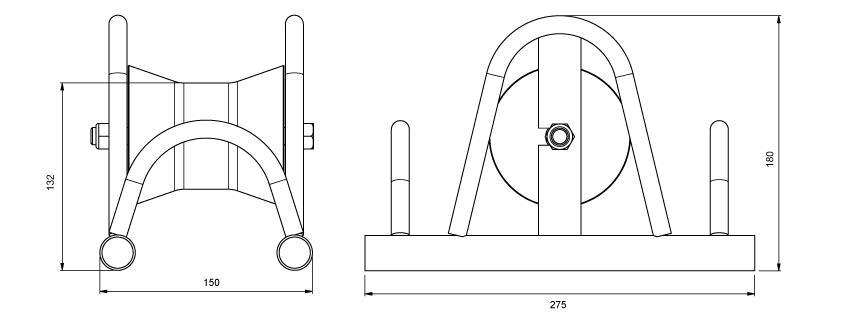

Compact Bridge Type Cable Roller
Slingco Part No. Base Footprint (mm) Height (mm) Max Cable Diameter (mm) Weight (kg)
ZGP8270275 x 150180902.5

A note about dimensions and tolerances

Slingco Part No. Base Footprint (in) Height (in) Max Cable Diameter (in) Weight (lb)
ZGP827010.83 x 5.973.545.5

A note about dimensions and tolerances
