Heavy Duty Triple Corner Cable Laying Roller

Heavy duty triple corner cable laying roller

Get in touch

Download info sheet

Save for later

Features and benefits

  • Heavy duty corner roller made from tubular sections
  • 3 x 110mm diameter large waisted steel rollers*
  • Sealed roller bearing fitted
  • Zinc plated finish
  • Universal link pin mount positions
  • Weight 8.5Kg

This is a heavy duty corner cable roller for use in most cable laying applications. They can be used singularly or linked together using link pins to form a full bend. All products in the bend roller range have the same link points to facilitate various bend/roller configurations.

* The diablo rollers can be substituted with a heavy gauge 89mm tubular steel roller fitted with oil impregnated maintenance free bushes.

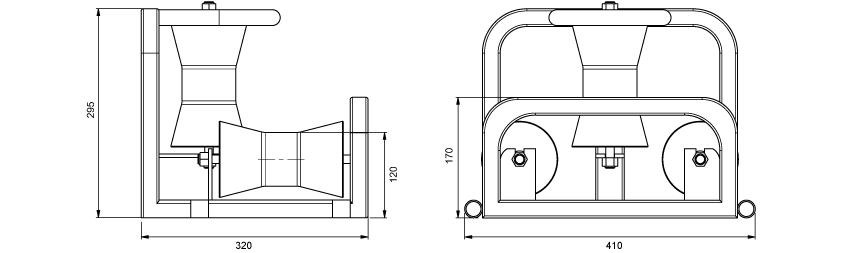

Heavy Duty Triple Corner Cable Roller
Slingco Part No. Base Footprint (mm) Height (mm)
ZGP8269410 x 320295

A note about dimensions and tolerances

Slingco Part No. Base Footprint (in) Height (in)
ZGP826916.14 x 12.611.61

A note about dimensions and tolerances
