Heavy Duty Hose Restraint Grips

Features and benefits

  • Prevents whipping from detached pressure hoses
  • Threaded bolt fitting
  • Double, Triple and Multiweave options
  • Double reinforced eyes
  • High strength options available

Safety restraining system designed to prevent whipping in the event of a pressurised hose becoming detached from its fitting.

Heavy duty hose restraint grips
Double Thimble Eye - Galvanised Steel
Slingco Part No. Eye type Range (mm) Lattice Length (mm) Lattice Weave Approx. Break Load (kg)
ZCS5363Thimble eye25 - 38660Double4,911
ZCS5364Thimble eye38 - 631,016Double8,928
ZCS5365Thimble eye63 - 891,067Double9,821
ZCS5366Thimble eye89 - 1141,118Double12,053
ZCS5367Thimble eye114 - 1401,219Double13,839
ZCS6012Thimble eye140 - 1801,524Double22,685
Double Thimble Eye - 316 Stainless Steel
Slingco Part No. Eye type Range (mm) Lattice Length (mm) Lattice Weave Approx. Break Load (kg)
ZCS5650Thimble eye25 - 38660Double3,437
ZCS5651Thimble eye38 - 631,016Double6,250
ZCS5652Thimble eye63 - 891,067Double6,874
ZCS5653Thimble eye89 - 1141,118Double8,437
ZCS5654Thimble eye114 - 1401,219Double9,687
ZCS6000Thimble eye140 - 1801,524Double15,880
Double Eye Multiweave - Max Strength - 316 Stainless Steel
Slingco Part No. Eye type Range (mm) Lattice Length (mm) Lattice Weave Approx. Break Load (kg)
ZCS3995Thimble eye29 - 401,270Double15,625
ZCS3295Flex eye70 - 871,460Multiple22,230
ZCS3254Flex eye76 - 891,460Multiple17,785
ZCS6004Flex eye89 - 1201,460Multiple22,320

A note about dimensions and tolerances

Double Thimble Eye - Galvanised Steel
Slingco Part No. Eye type Range (in) Lattice Length (in) Lattice Weave Approx. Break Load (lb)
ZCS5363Thimble eye1.0 - 1.526Double11,000
ZCS5364Thimble eye1.5 - 2.540Double20,000
ZCS5365Thimble eye2.5 - 3.542Double22,000
ZCS5366Thimble eye3.5 - 4.544Double27,000
ZCS5367Thimble eye4.5 - 5.548Double31,000
ZCS6012Thimble eye5.5 - 7.060Double50,000
Double Thimble Eye - 316 Stainless Steel
Slingco Part No. Eye type Range (in) Lattice Length (in) Lattice Weave Approx. Break Load (lb)
ZCS5650Thimble eye1.0 - 1.526Double7,700
ZCS5651Thimble eye1.5 - 2.540Double14,000
ZCS5652Thimble eye2.5 - 3.542Double15,400
ZCS5653Thimble eye3.5 - 4.544Double18,900
ZCS5654Thimble eye4.5 - 5.548Double21,700
ZCS6000Thimble eye5.5 - 7.060Double35,000
Double Eye Multiweave - Max Strength - 316 Stainless Steel
Slingco Part No. Eye type Range (in) Lattice Length (in) Lattice Weave Approx. Break Load (lb)
ZCS3995Thimble eye1.14 - 1.5750Double35,000
ZCS3295Flex eye2.75 - 3.4458Multiple49,000
ZCS3254Flex eye3.00 - 3.5058Multiple39,200
ZCS6004Flex eye3.50 - 4.7558Multiple50,000

A note about dimensions and tolerances

Related products

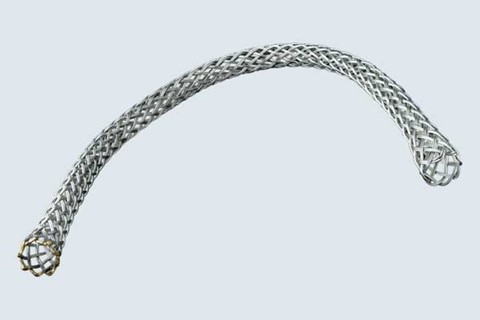

Hose armour grips for hose protection

Protect hydraulic and other hoses in harsh environments. The wire mesh covering minimises damage to hose ...

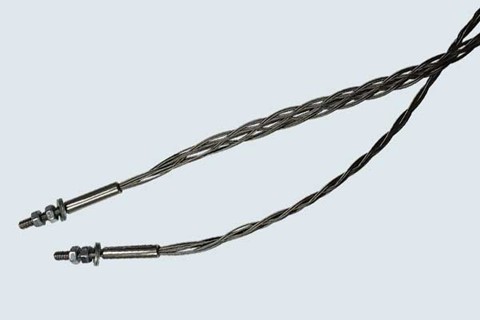

Speciality hose restraint grips y type

Y Type Threaded Bolt Hose Grip - 316 Stainless Steel

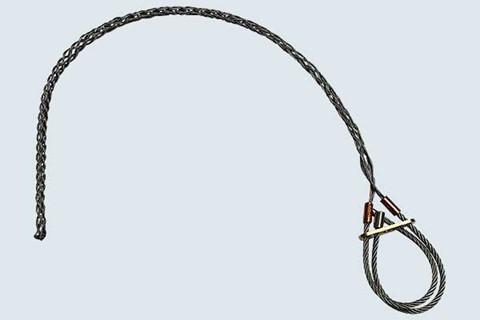

Speciality hose restraint grips u type
