RT Type - Rotating Eye Double Weave Cable Grips

RT type rotating eye double weave cable grips

Get in touch

Download info sheet

Save for later

Features and benefits

  • Double weave construction
  • Increased pulling strength
  • Protective shoulders to prevent abrasion
  • Rotating eye to easy match with line swivel

Double weave construction for medium to heavy pulling applications in underground installations. Additionally its steel forged revolving head is ideal for connecting to Slingco swivels.

Warning: The Slingco RT Type Rotating Eye Grip does not revolve under load. The rotating eye does not replace the need for a swivel.

Short Length - Galvanised Steel
Slingco Part No. Range (mm) Lattice Length (mm) Approx. Break Load (kg)
ZCS273413 - 163002,540
ZCS273516 - 193053,084
ZCS273619 - 254743,084
ZCS273825 - 385495,806
ZCS273938 - 505527,440
ZCS274050 - 6358712,338
ZCS274163 - 7664214,969
ZCS274276 - 8973119,504
ZCS274389 - 10280419,504
ZCS2744102 - 11582619,504
Standard - Longer Length - Galvanised Steel
Slingco Part No. Range (mm) Lattice Length (mm) Approx. Break Load (kg)
ZCS274513 - 164052,540
ZCS274616 - 194363,084
ZCS274719 - 257653,084
ZCS274825 - 388125,806
ZCS274938 - 507477,439
ZCS275050 - 6374012,338
ZCS275163 - 7689314,969
ZCS275276 - 891,00518,597
ZCS275389 - 1021,01419,504
ZCS2754102 - 11594719,504
ZCS2755115 - 1271,35019,504
ZCS2756127 - 1531,36119,504
ZCS2757153 - 1781,56319,504

A note about dimensions and tolerances

Short Length - Galvanised Steel
Slingco Part No. Range (in) Lattice Length (in) Approx. Break Load (lb)
ZCS27340.50 - 0.62125,600
ZCS27350.62 - 0.75126,800
ZCS27360.75 - 1.0018.56,800
ZCS27381.00 - 1.5021.512,800
ZCS27391.50 - 2.002216,400
ZCS27402.00 - 2.502327,200
ZCS27412.50 - 3.002533,000
ZCS27423.00 - 3.502941,000
ZCS27433.50 - 4.003243,000
ZCS27444.00 - 4.5032.543,000
Standard - Longer Length - Galvanised Steel
Slingco Part No. Range (in) Lattice Length (in) Approx. Break Load (lb)
ZCS27450.50 - 0.62165,600
ZCS27460.62 - 0.75176,800
ZCS27470.75 - 1.00306,800
ZCS27481.00- 1.503212,800
ZCS27491.50 - 2.003016,400
ZCS27502.00 - 2.502927,200
ZCS27512.50 - 3.003533,000
ZCS27523.00 - 3.504041,000
ZCS27533.50 - 4.004043,000
ZCS27544.00 - 4.5037.543,000
ZCS27554.50 - 5.005343,000
ZCS27565.00 - 6.005443,000
ZCS27576.00 - 7.006243,000

A note about dimensions and tolerances

Related products

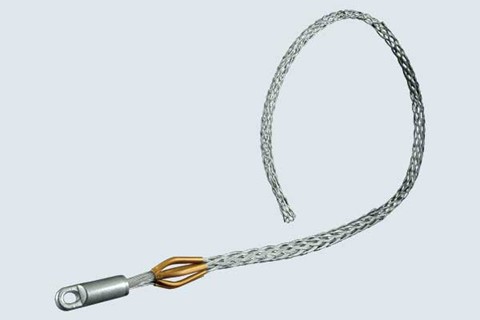

R type rotating multi weave cable grips
