LD Type - Light Duty Pulling Grips

Features and benefits

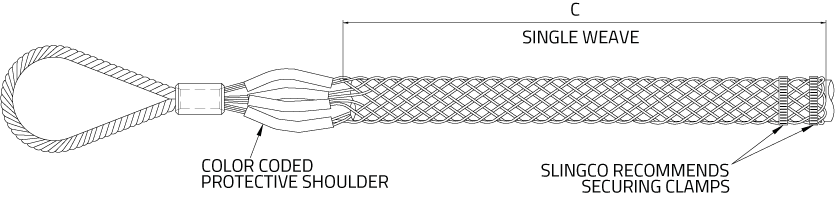

  • Single-weave construction
  • Colour coded for ease of identification
  • Protective shoulders to prevent abrasion
  • Suitable for bare or insulated conductors
  • Flexible eye compatible with Line swivels
The HD, MD and LD type form a range of conductor grips that are quick and easy to attach and remove, in sizes from 8mm to 48mm, with MBL up to 24,000kgs and WLL 8,000kg. They are suitable for all common conductors, e.g. Horse, Lynx, Upas, Zebra and Araucaria plus earth wires OPGW. The flexible eye connects with Slingco line pulling swivels for trouble-free pulling applications. Made of galvanised steel.
L type light duty pulling grips
Slingco Part No. Colour Code Range (mm) Lattice Length (mm) Min. Break Load (kg) WLL (kg)
ZCS7233Green10 - 136101,120373
ZCS7234Brown13 - 196101,680560
ZCS7235Light Blue19 - 256102,240747
ZCS7236Gold25 - 386104,4801,493

A note about dimensions and tolerances

Slingco Part No. Colour Code Range (in) Lattice Length (in) Min. Break Load (lb) WLL (lb)
ZCS7233Green0.40 - 0.51242,469823
ZCS7234Brown0.51 - 0.75243,7041,235
ZCS7235Light Blue0.75 - 0.98244,9381,646
ZCS7236Gold0.98 - 1.50249,8773,292

A note about dimensions and tolerances
