HD Type - Heavy Duty Pulling Grips (Non Colour Coded )

Features and benefits

  • Multi-weave construction
  • Protective shoulders to prevent abrasion
  • Suitable for bare or insulated conductors
  • Flexible eye compatible with Line swivels
The HD, MD and LD type form a range of conductor grips that are quick and easy to attach and remove, in sizes from 8mm to 48mm, with MBL up to 24,000kgs and WLL 8,000kg. They are suitable for all common conductors, e.g. Horse, Lynx, Upas, Zebra and Araucaria plus earth wires OPGW. The flexible eye connects with Slingco line pulling swivels for trouble-free pulling applications. Made of galvanised steel.
Slingco Part No. Range (mm) Lattice Length (mm) Min. Break Load (kg) WLL 3:1 (kg)
ZCS1036812 - 191,3728,5002,833
ZCS1036919 - 251,37913,5004,500
ZCS1037025 - 321,79515,0005,000
ZCS1037132 - 381,80718,0006,000
ZCS1037238 - 481,83824,0008,000

A note about dimensions and tolerances

Slingco Part No. Range (in) Lattice Length (in) Min. Break Load (lb) WLL 3:1 (lb)
ZCS103680.47 - 0.755418,7396,246
ZCS103690.75 - 0.9854.3629,7629,921
ZCS103700.98 - 1.2670.733,06911,023
ZCS103711.26 - 1.5071.139,68313,228
ZCS103721.50 - 1.8973.848,50116,167

A note about dimensions and tolerances

Related products

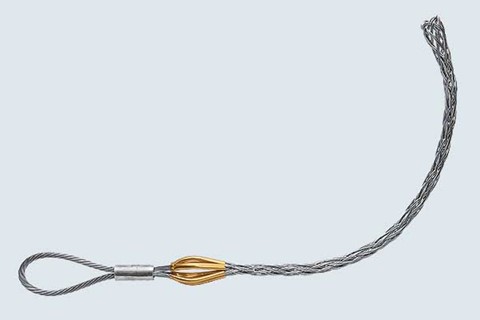

M type medium duty pulling grips
