ST Type - Single Eye Double Weave Cable Grips

Features and benefits

  • Double weave construction
  • Icreased pulling strength
  • Protective shoulders to prevent abrasion
  • Flexible eye easy match with line swivel

This Slingco grip features a double weave construction for medium to heavy pulling applications in underground installations.

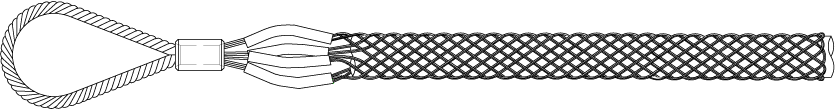

ST type single eye double weave cable grips
Short Length - Galvanised Steel
Slingco Part No. Range (mm) Lattice Length (mm) Approx. Break Load (kg)
ZCS251113 - 165342,040
ZCS251216 - 196102,540
ZCS251319 - 256103,085
ZCS251425 - 386104,355
ZCS251538 - 506107,441
ZCS251650 - 636108,390
ZCS251763 - 7661011,115
ZCS251876 - 8961011,115
ZCS251989 - 10266014,065
Longer Length - Galvanised Steel
Slingco Part No. Range (mm) Lattice Length (mm) Approx. Break Load (kg)
ZCS252019 - 259143,085
ZCS252125 - 389144,355
ZCS252238 - 509147,440
ZCS252350 - 639148,390
ZCS252463 - 7691411,115
ZCS277776 - 8991411,115
ZCS277889 - 1021,01014,065

A note about dimensions and tolerances

Short Length - Galvanised Steel
Slingco Part No. Range (in) Lattice Length (in) Approx. Break Load (lb)
ZCS25110.50 - 0.62214,500
ZCS25120.62 - 0.75245,600
ZCS25130.75 - 1.00246,800
ZCS25141.00 - 1.50249,600
ZCS25151.50 - 2.002416,400
ZCS25162.00 - 2.502418,500
ZCS25172.50 - 3.002424,500
ZCS25183.00 - 3.502424,500
ZCS25193.50 - 4.002631,000
Longer Length - Galvanised Steel
Slingco Part No. Range (in) Lattice Length (in) Approx. Break Load (lb)
ZCS25200.75 - 1.00366,800
ZCS25211.00 - 1.50369,600
ZCS25221.50 - 2.003616,400
ZCS25232.00 - 2.503618,500
ZCS25242.50 - 3.003624,500
ZCS27773.00 - 3.503624,500
ZCS27783.50 - 4.004031,000

A note about dimensions and tolerances
