A Type - High Strength Cable Socks

Get in touch

+61 3 8840 6556
Email us
Contact form

Download info sheet

Save for later

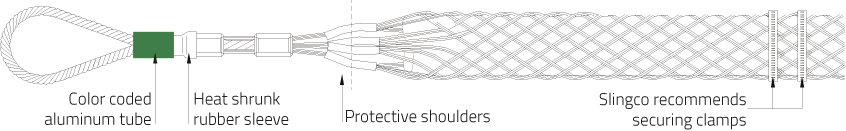

Features and benefits

Double-weave construction
Colour coded for ease of identification
Protective shoulders to prevent abrasion
Suitable for bare or insulated conductors
Flexible eye compatible with line swivels

The strongest sock we produce; can be used for metal wire and synthetic rope pulls. Perfect for overhead transmission and distribution line pulling or any applications with heavy load ratings, e.g. gas, electric railroad, rigging lines and construction pulls.

When pulling synthetic rope use a Slingco Feed Tube to make rope insertion a breeze. To avoid the effects of torsion a line pulling swivel that rotates under load should be used. Galvanised steel and colour coded for ease of identification.

High strength A-Type socks recommended when pulling guy or static wire.

1. Imperial
2. Metric
3. ACSR Guide - Grip and Swivel Match-Up

Slingco Part No.	Colour Code	Rope Diameter (ins)	Conductor Diameter (ins)	Overall Length (ins)	Lattice Length (ins)	Approx. Break Load (lbs)
ZCS1799	Black	0.25 - 0.65	0.19 - 0.40	38	28	7,000
ZCS3020	Purple	0.30 - 0.40	0.25 - 0.40	42	30	10,000
ZCS1800	Dark Green	0.50 - 0.90	0.38 - 0.63	51	37	14,000
ZCS3522	Grey	0.44 - 0.90	0.44 - 0.63	110	97	20,000
ZCS1801	Red	0.75 - 1.10	0.63 - 0.88	74	58	20,000
ZCS5543	Brown	0.75 - 1.10	0.63 - 0.88	81	62	30,700
ZCS1802	Blue	1.00 - 1.50	0.88 - 1.13	80	61	30,700
ZCS1803	Yellow	1.25 - 1.70	1.13 - 1.38	112	90	47,000
ZCS1804	Aluminium	1.50 - 2.10	1.38 - 1.90	119	92	67,000
ZCS6712	-		2.00 - 2.60	109.25	100	70,528
ZCS7852	-		2.50 - 3.00	109.25	100	70,528

A note about dimensions and tolerances

Slingco Part No.	Colour Code	Rope Diameter (mm)	Conductor Diameter (mm)	Overall Length (mm)	Lattice Length (mm)	Approx Break Load (kg)
ZCS1799	Black	6 - 16	5 - 10	965	710	3,180
ZCS3020	Purple	7.5 - 10	6 - 10	1,067	760	4,530
ZCS1800	Dark Green	13 - 23	9.7 - 16	1,300	940	6,360
ZCS3522	Grey	11 - 23	11 - 16	2,800	2,470	9,072
ZCS1801	Red	19 - 28	16 - 22	1,880	1,473	9,072
ZCS5543	Brown	19 - 28	16 - 22	2,060	1,579	13,925
ZCS1802	Blue	25 - 38	22 - 29	2,032	1,549	13,955
ZCS1803	Yellow	32 - 43	29 - 35	2,845	2,299	21,360
ZCS1804	Aluminium	38 - 53	35 - 50	3,020	2,336	30,455
ZCS6712	-		50.8 - 66	2,775	2,557	32,000
ZCS7852	-		63.5 - 76	2,775	2,557	32,000

A note about dimensions and tolerances

Code Word	Cable	Cable OD* (in)	Slingco Cable Sock	Size Range (in)	Break Load (lb)	Recommended Swivel
Raven	1/0	0.398	ZCS1800	0.38-0.63	14,000	ZSW2093
Raven	1/0	0.398	ZCS3020	0.25-0.40	10,000	ZSW2092
Raven	1/0	0.398	ZCS1799	0.19-0.40	7,000	ZSW2092
Raven	1/0	0.398	ZCS1710	0.25-0.50	7,000	ZSW2092
Quail	2/0	0.447	ZCS3522	0.44-0.63	20,000	ZSW2094
Pigeon	3/0	0.502	ZCS1800	0.38-0.63	14,000	ZSW2092
Penguin	4/0	0.563	ZCS1710	0.25-0.50	7,000	ZSW2092
Merlin; Trogon; Woodcock; Widgeon; Linnet; Driole	336.4	0.684-0.741	ZCS5543	0.63-0.88	30,700	ZSW2096
Merlin; Trogon; Woodcock; Widgeon; Linnet; Driole	336.4	0.684-0.741	ZCS1801	0.63-0.88	20,000	ZSW2094
Merlin; Trogon; Woodcock; Widgeon; Linnet; Driole	336.4	0.684-0.741	ZCS1711	0.50-0.75	10,500	ZSW2092
Chickadee	397.5	0.743	ZCS5543	0.63-0.88	30,700	ZSW2096
Chickadee	397.5	0.743	ZCS1801	0.63-0.88	20,000	ZSW2094
Chicadee	397.5	0.743	ZCS1711	0.50-0.75	10,500	ZSW2092
Ptarmigan; Stork; Brant; Ibis; Lark	397.5	0.752-0.806	ZCS5543	0.63-0.88	30,700	ZSW2096
Ptarmigan; Stork; Brant; Ibis; Lark	397.5	0.752-0.806	ZCS1801	0.63-0.88	20,000	ZSW2094
Ptarmigan; Stork; Brant; Ibis; Lark	397.5	0.752-0.806	ZCS1712	0.75-1.00	14,100	ZSW2093
Pelican; Tailorbird; Toucan; Hawk	477	0.814-0.858	ZCS5543	0.63-0.88	30,700	ZSW2096
Pelican; Tailorbird; Toucan; Hawk	477	0.814-0.858	ZCS1801	0.63-0.88	20,000	ZSW2094
Pelican; Tailorbird; Toucan; Hawk	477	0.814-0.858	ZCS1712	0.75-1.00	14,100	ZSW2093
Osprey; Parakeet; Dove; Eagle	556.5	0.88-0.953	ZCS1802	0.88-1.13	30,700	ZSW2096
Osprey; Parakeet; Dove; Eagle	556.5	0.88-0.953	ZCS1712	0.75-1.00	14,100	ZSW2093

Note:
*Check cable OD. Different manufacturer cable OD differ slightly.
Grips and Swivels are matched based upon ultimate break load. When multiple grip/swivel combinations are available, select the combination that matches your project's load requirement and factor of safety.
When pulling conductor overhead it is important to use a swivel with your grips to release torsion.

A note about dimensions and tolerances

Related products

Line Pulling Swivel - Galvanized

Slingco Line Swivels are designed to the highest specifications for underground and overhead pulling appl...

MU Type – High Strength Cable Socks

This sock's multi-weave construction (triple, double, single) is ideal for heavy loads. MU cable socks ar...

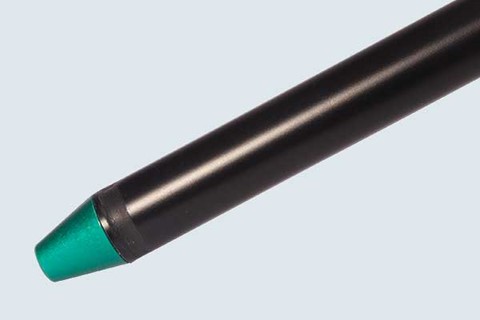

Feed Tubes
